Fixed-charge back plate, permanently polarized condenser
Polar Pattern:
Cardioid
Frequency Response:
20-20,000 Hz
Low Frequency Roll Off:
80 Hz, 12 dB/octave
Open Circuit Sensitivity:
-36 dB (15.8 mV), re 1V at 1 Pa
Maximum Input Sound Level:
145 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range:
121 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio:
70 dB, 1 kHz at 1 Pa
Phantom Power Requirements:
48V DC, 3.2 mA typical
Switches:
Flat, roll-off
Description

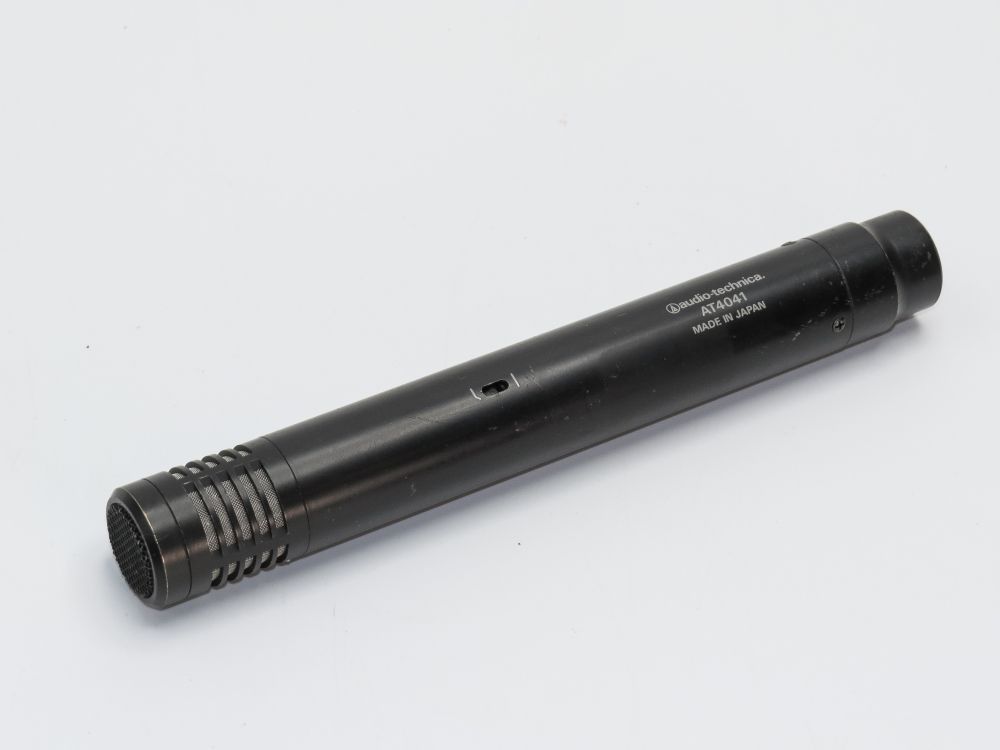

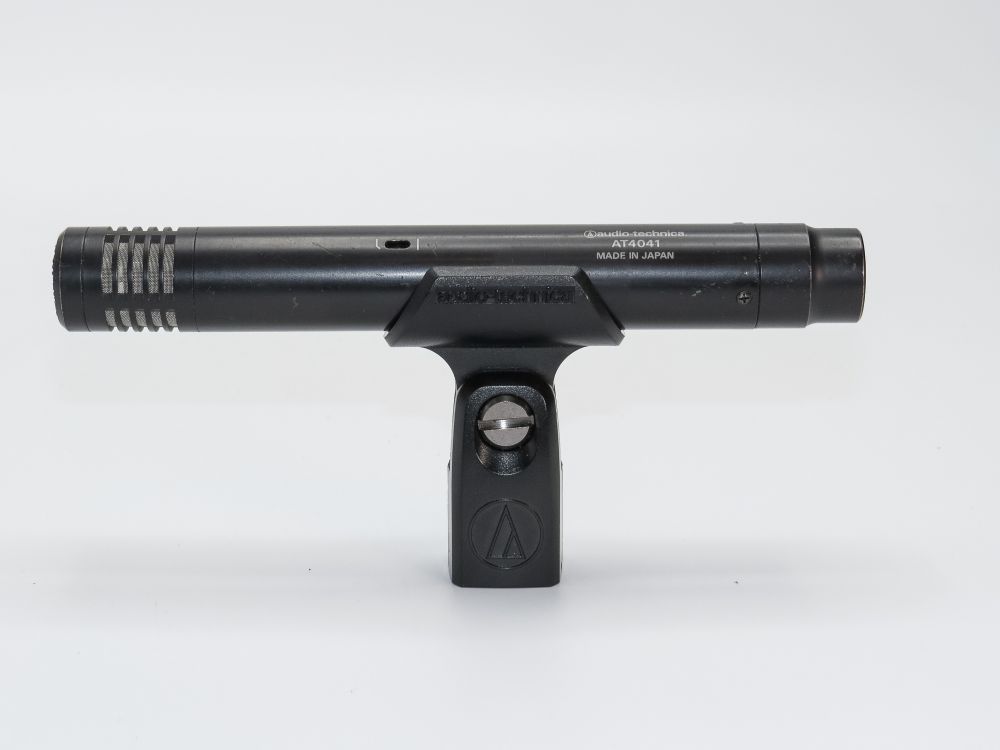

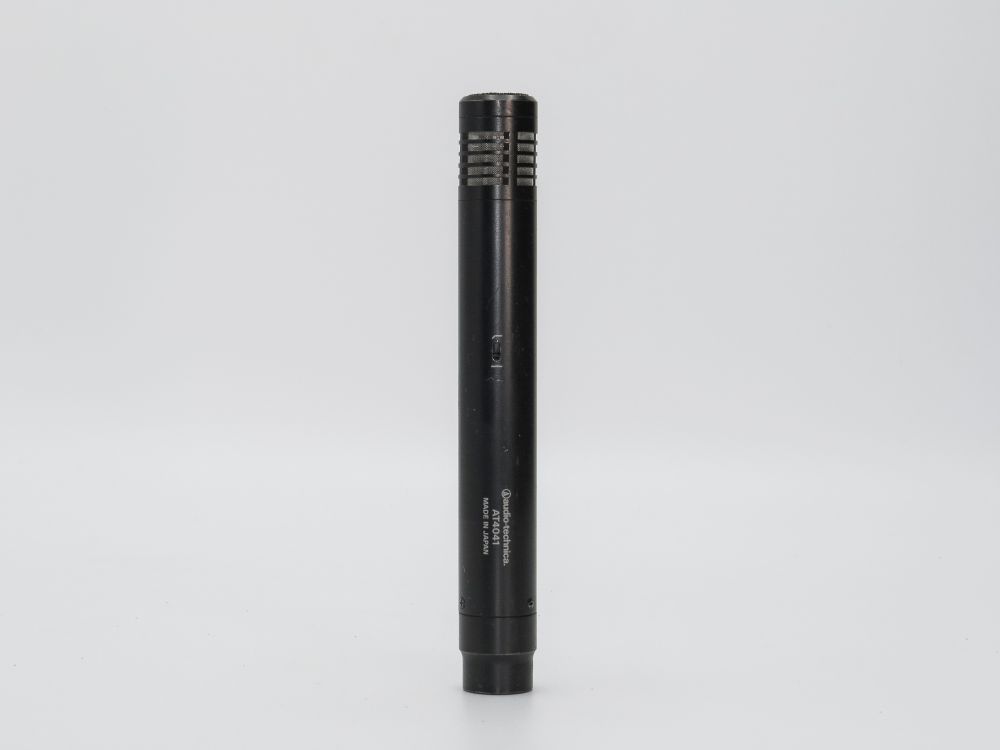

The AT4041 cardioid studio condenser microphone features a smooth, extended frequency response with a slight rise in the high-frequency region and a transformerless output for very high SPL-handling capability. A unique combination of audio excellence and moderate cost, the AT4041 is a rugged microphone housed in a case of turned brass with black chrome plating for durability and low reflectivity. The element back plate holds a fixed charge and has been aged to provide energy stabilization. The surface of the back plate is precision milled to ensure maximum charge linearity, resulting in a reduction in both frequency response peaks and diaphragm break-up distortion.
Smooth, extended frequency response with a slight rise occurring in the high-frequency region
Ideal for drum overheads, acoustic guitar, piano, horns and under snare
Low-mass diaphragm improves transient response, increases response bandwidth and reduces handling and mechanical noise transfer
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
Switchable hi-pass filter and rugged turned-brass microphone housing.
