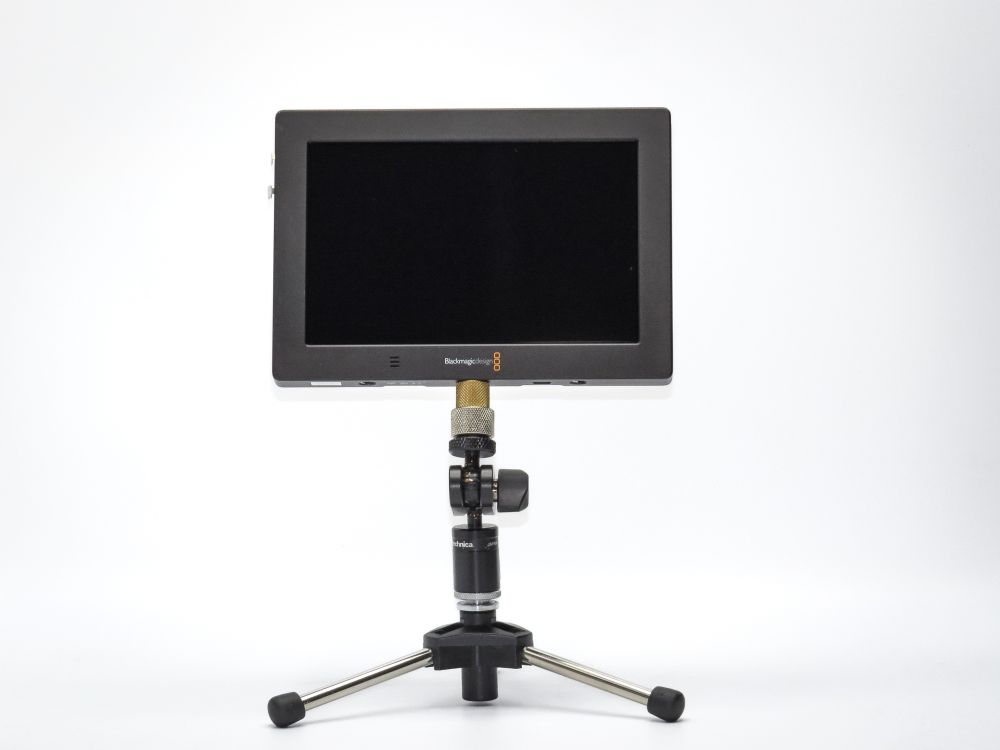

Display Type:

LCD touchscreen

Size:

7" (17.8 cm)

Panel Type:

TFT LCD

Resolution:

1920 x 1200

Display Size:

7.0" / 17.8 cm

Viewing Angle:

135°

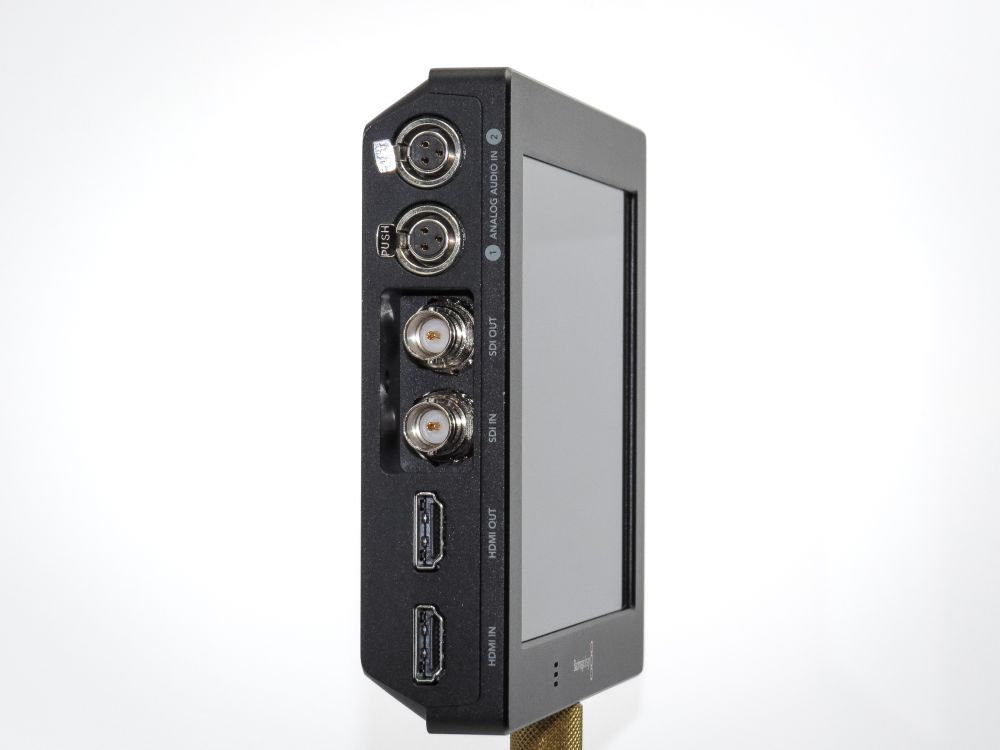

Connections:

SDI Video Input:

1x SD/HD/3G/6G-SDI (BNC connector)

SDI Video Output:

1x SD/HD/3G-SDI (BNC connector)



HDMI Video Input:

1x HDMI 2.0a

HDMI Video Output:

1x HDMI 2.0a

SDI Audio Input:

2x channels embedded in 6G-SDI

SDI Audio Output:

2x channels embedded in 6G-SDI

HDMI Audio Input:

2x channels embedded via HDMI 2.0a

HDMI Audio Output:

2 channels embedded via HDMI 2.0a

Analog Audio Input:

2x balanced mini XLR with phantom power

Audio Output:

1x 3.5 mm stereo analog audio output jack

Remote Control:

1x 2.5mm LANC for Record Start and Stop

USB:

Mini-B USB 2.0

Recording:

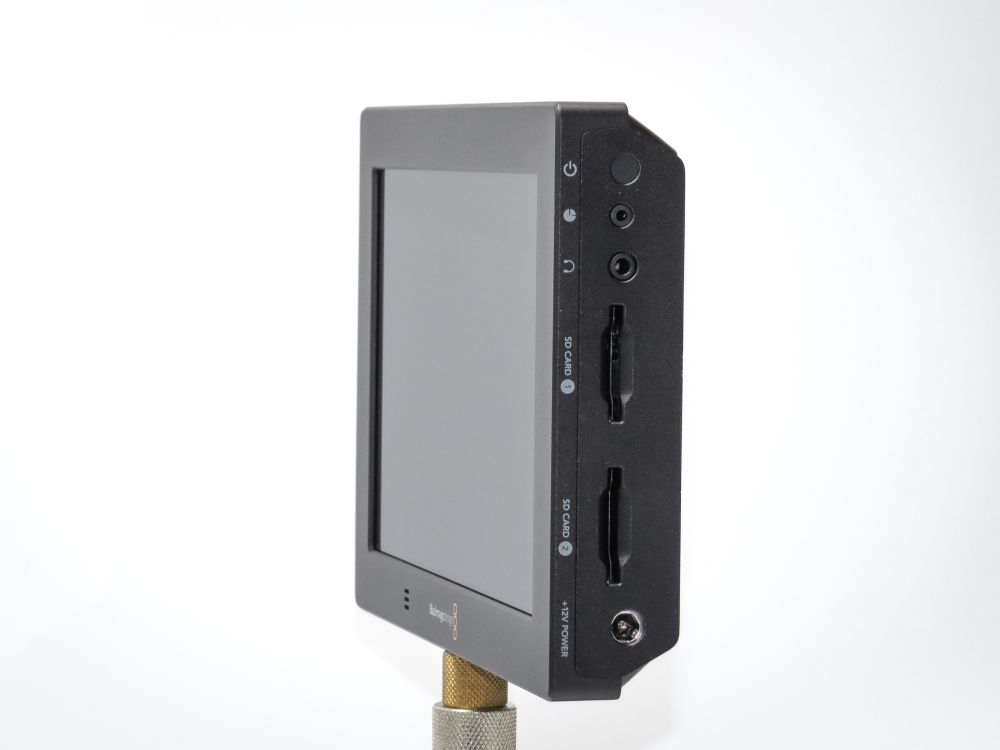

Dual UHS-II SD card slots

Recording Media:

SDXC UHS-II

SDXC UHS-I

SDHC UHS-I SD

Supports DS, HS, SDR12, SDR25, DDR50, SDR50, and SDR104 SD cards

Codecs Supported:

Apple ProRes 422 HQ, 422, LT, Proxy Avid DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF

Supported Video Formats:



SDI:

3840 x 2160p: 23.98/24/25/29.97/30

1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60

1920 x 1080PsF: 23.98/24

1920 x 1080i: 50/59.94/60

1280 x 720p: 50/59.94/60

625/50i: PAL

525/59.94i: NTSC

HDMI:

3840 x 2160p: 23.98/24/25/29.97/30

1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60

1920 x 1080i: 50/59.94/60

1280 x 720p: 50/59.94/60

480p60

576p50

625/25: PAL

525/29.97: NTSC

Recording Time With 128GB SD card:

Apple ProRes 422 HQ: 1.61 hours

ProRes 422: 2.43 hours

ProRes LT: 3.47 hours

ProRes Proxy: 7.9 hours

SDI Video Sampling:

4:2:2 YUV

SDI Audio Sampling:

48 kHz, 24-bit

SDI Color Precision:

10-bit

SDI Compliance:

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M

SDI Metadata Support:

HD RP188 and closed captioning

SDI Color Space:

REC 601, REC 709

HDMI Color Precision:

10-bit

HDCP Compatible:

No

Encoding Formats:

3840 x 2160

ProRes 422 HQ, 422, LT, Proxy

DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF

DNxHR HQX, SQ, SQ MXF, LB, LB MXF

General:

OS Compatibility:

Mac OS X 10.9 Mavericks

Mac OS X 10.10 Yosemite or later

Windows 7

Windows 8

Power Requirements:

12 VDC

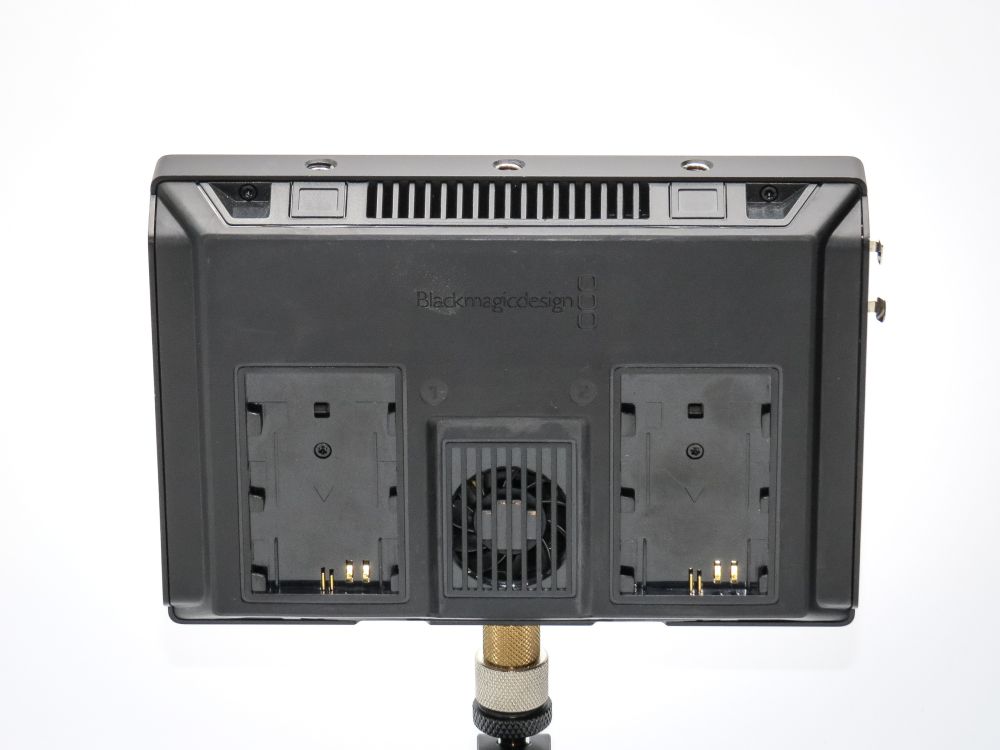

Batteries:

2x Rechargeable LP-E6 lithium-ion batteries

AC Adapter:

110 to 240 VAC

Operating Temperature:

41 to 104°F / 5 to 40°C

Storage Temperature:

-6 to 113°F / -21 to 45°C

Dimensions:

7.45 x 5.14 x 1.28" / 18.92 x 13.06 x 3.25 cm

Weight:

1.7 lb / 0.8 kg, Including

I/O:

Relative Humidity

0 to 90% non-condensing
