Lens Mount

Micro Four Thirds

Image Sensor

18.96 x 10 mm (Four Thirds) CMOS

Exposure Control

Shutter Type

Electronic Rolling Shutter

ISO/Gain Sensitivity

Native: 100 to 25,600

Advertised Dynamic Range

13 Stops

Internal Recording Modes

Blackmagic RAW

4096 x 2160 up to 59.94 fps [28 to 136 MB/s]

3840 x 2160 up to 59.94 fps [26 to 127 MB/s]

2880 x 2160 up to 80 fps [20 to 96 MB/s]

4096 x 1720 up to 75 fps [22 to 108 MB/s]

2688 x 1512 up to 120 fps [13 to 63 MB/s]

1920 x 1080p up to 120 fps [7 to 33 MB/s]

ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT

4096 x 2160 up to 59.94 fps [24.25 to 117.88 MB/s]

3840 x 2160 up to 59.94 fps [22.4 to 110 MB/s]

1920 x 1080p up to 120 fps [5.6 to 27.5 MB/s]

External Recording Modes

4:2:2 10-Bit via HDMI

1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps

Raw 12-Bit via USB

4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps

3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps

1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps

Interface

Media/Memory Card Slot

Slot 1: CFast

Slot 2: SD/SDHC/SDXC (UHS-II)

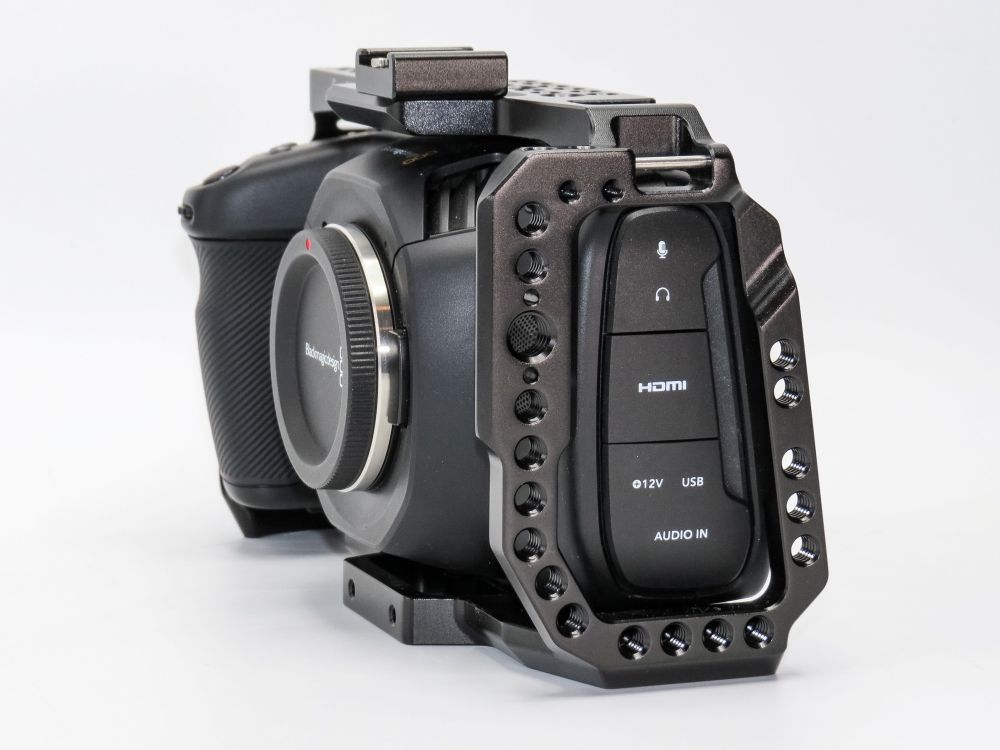

Video I/O

1x HDMI (Unspecified Signal) Output

Audio I/O

1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input

1x 1/8" / 3.5 mm TRS Stereo Headphone Output

1x Mini XLR Mic/Line (+48 V Phantom Power) Input

Power I/O

1x Weipu SF610/S2 Input

Other I/O

1x USB-C Video Output

1x 1/8" / 3.5 mm (Timecode) Input (Shared with Mic/Line Input)

Wireless

Bluetooth Control

Mobile App Compatible

Yes: iOS Only

App Name: Blackmagic Camera Control

Functionality: Adjust Settings, Remote Control

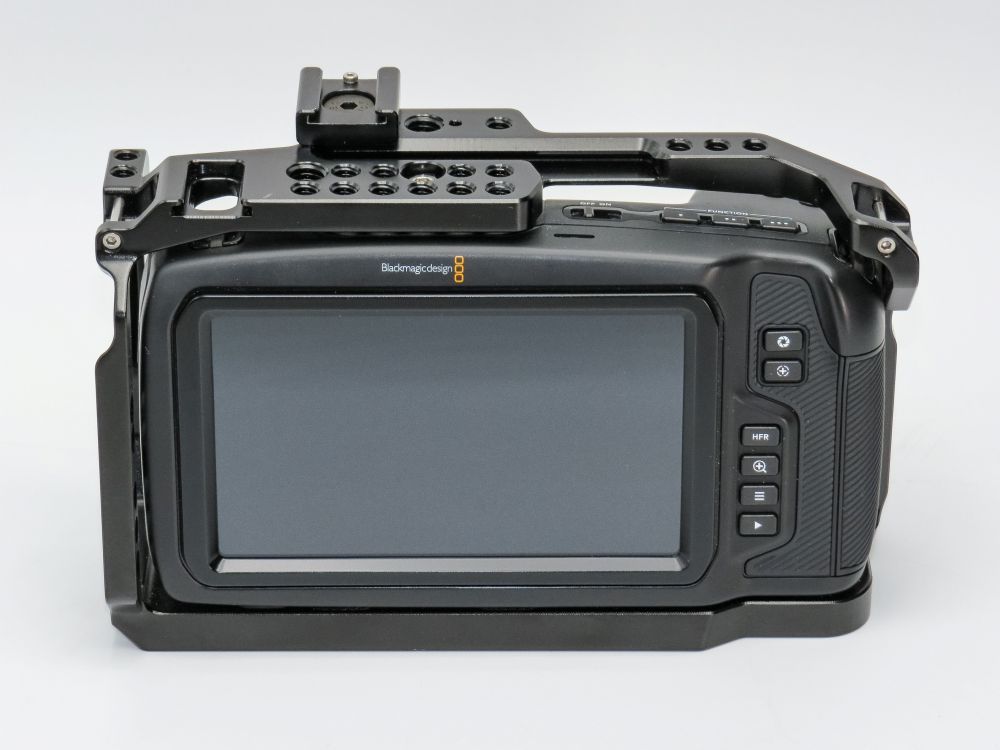

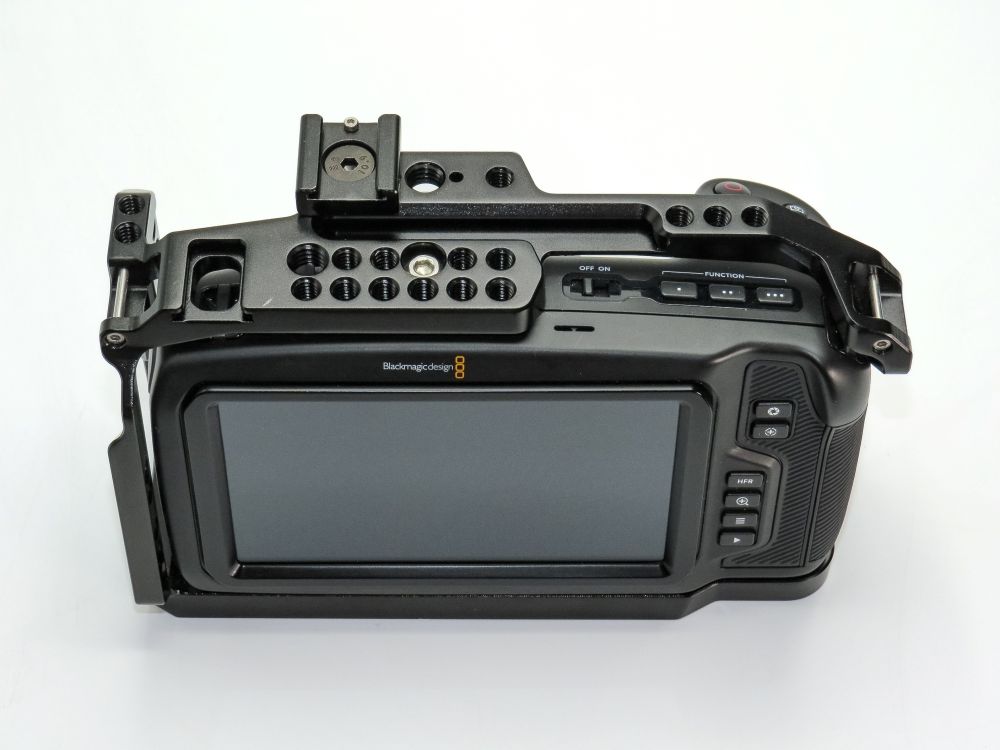

Monitor

Display Type

Primary Monitor: Fixed 5" Touchscreen LCD

Resolution

Primary Monitor: 1920 x 1080

Focus Mode

Automatic, Manual Focus

Battery Type

Canon LP-E6

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C

Dimensions (W x H x D)

7 x 3.8 x 3.4" / 177.8 x 96.5 x 86.4 mm

Weight

1.5 lb
