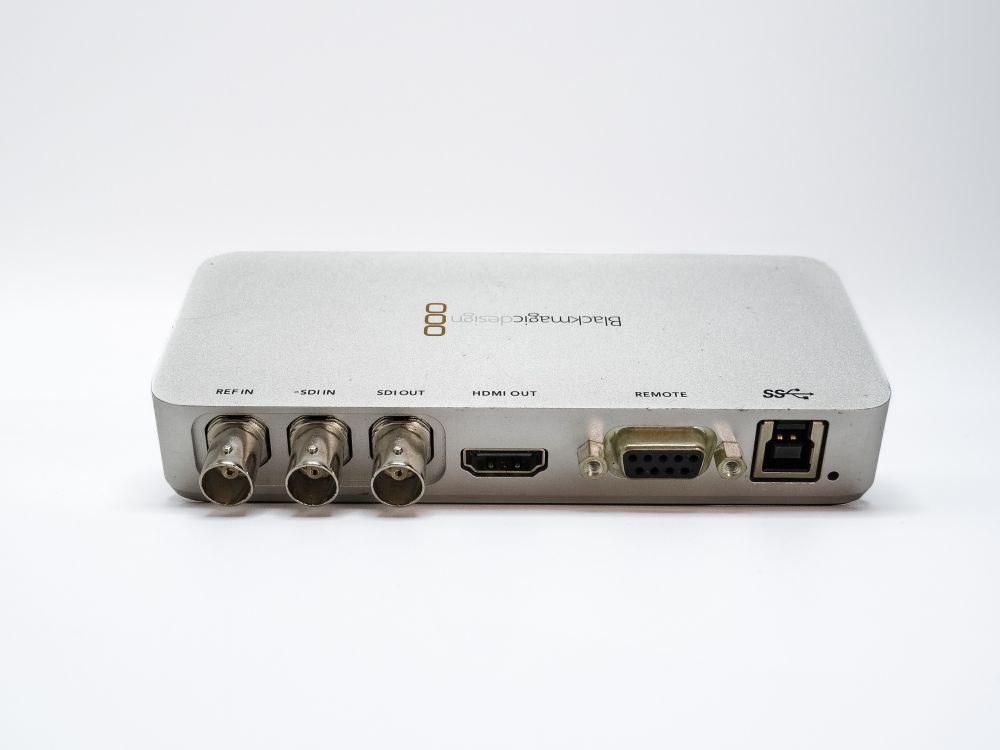

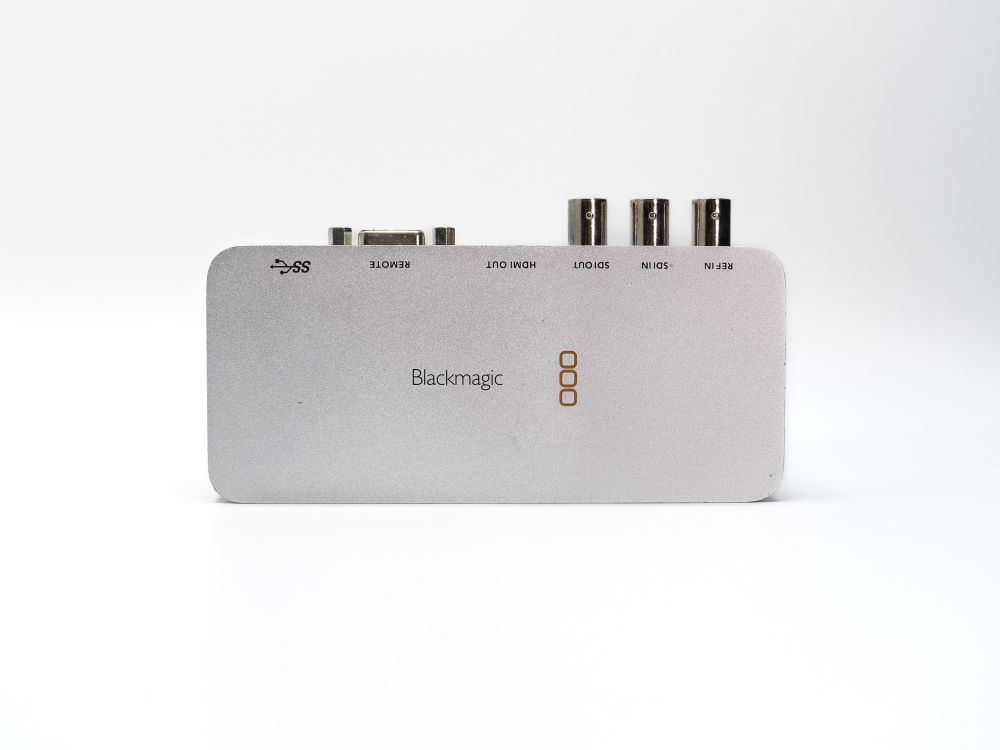

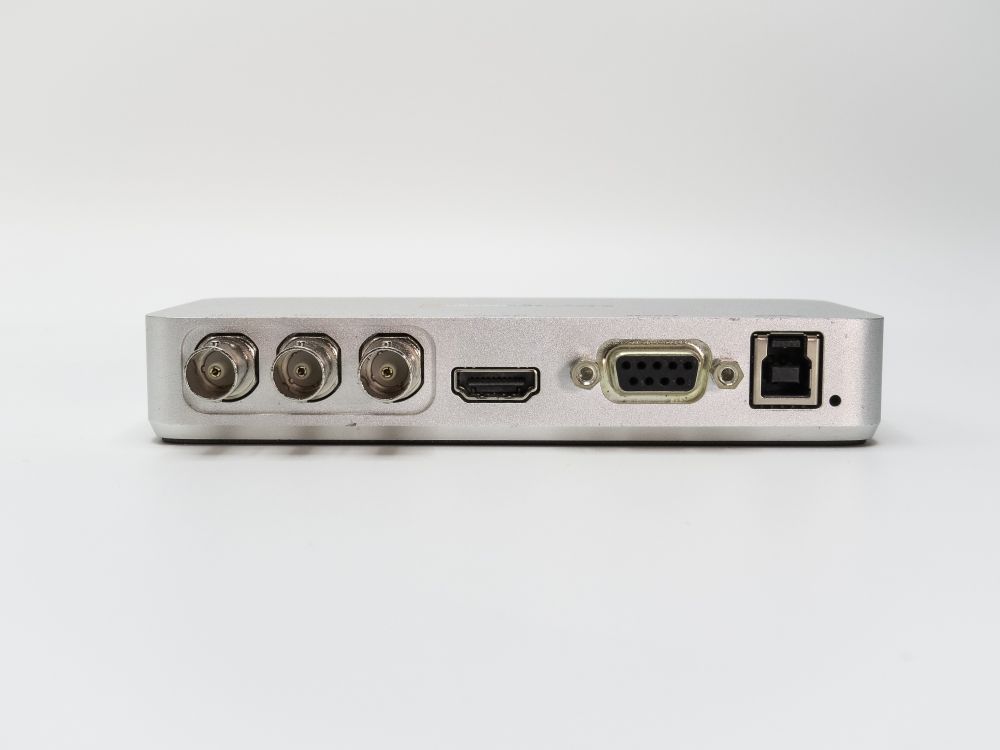

Connectivity:

SDI Input:

1x 10-bit SD/HD switchable

SDI Output:

1x 10-bit SD/HD switchable

HDMI Output Connector:

1x HDMI type A

SDI Audio Input:

8 channels embedded in SD and HD

SDI Audio Output:

8 channels embedded in SD and HD

HDMI Audio Output:

2 channels embedded in SD and HD

Computer Interface:

USB 3.0

Sync Input:

Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format

Device Control:

Sony-compatible RS-422 deck control port. Serial ports TxRx direction reversible under software control

Standards:

SD Format Support:

625/25 PAL, 525/29.97 NTSC, and 525/23.98 NTSC

HD Format Support:

720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94, and 1080i60

SDI Compliance:

SMPTE 259M and SMPTE 292M

SDI Metadata Support:

VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning

Video Sampling:

4:2:2

Audio Sampling:

Television standard sample rate of 48 kHz and 24-bit

Color Precision:

10-bit

Color Space:

REC 601, REC 709

HDMI Color Precision:

10-bit

HDMI Resolution:

Pixel-for-pixel HD resolution input to connected device

HDMI Configuration:

HDMI automatically configures to connected display

Multiple Rate Support:

SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI

Copy Protection:

For legal reasons HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Processing:

Colorspace Conversion:

Hardware-based real time

HD Down Conversion:

Software-based down conversion during video playback

HD Up Conversion:

Real-time standard definition to 1080HD and 720HD during video capture

HD Cross Conversion:

Real time 720 HD to 1080 HD during video capture

Real-Time Effects:

Adobe Premiere Pro Mercury Playback Engine effects in DV, MJPEG, DVCPRO HD, DSLR, AVCHD, XDCAM, XDCAM HD, and uncompressed.

Software:

Media Express, Disk Speed Test, Blackmagic Control Panel, and Blackmagic driver on Windows

Firmware Upgrade:

Firmware built into software driver. Loaded at system start or via updater software

Minimum System Requirements:

Compatible with Microsoft Windows 7. Requires a computer with onboard USB 3.0, or a USB 3.0 PCI Express 2.0 card. Does not support USB 2.0 capture and playback

Weight:

0.56lb
