A unique DNS algorithm with rapid 2-knob setup per channel
Detailed DNS mode ideal for permanent installations
1U rackmount with 90V-250V universal PSU and 12VDC input
Audio Specifications:
I/O Type:
Digital PCM
Audio Formats:
AES3 on XLR sockets plus DB25 (AES59 pin-out)
Sample Rates:
44.1, 48, 88.2, 96 kHz
I/O Resolution:
24 bits
Process Resolution:
40 bits, floating-point
Processor Power:
3.9 GFLOPS
Latency:
<10 samples (0.2ms at 44.1kHz)
Fail-safe audio bypass
Physical Specifications:
Mains Power:
90-260VAC; 50-60Hz auto-selecting
DC Power:
12VDC on standard 4-pin connector
Size:
1U rackmount, 20cm depth
Weight:
6.61lbs.
DNS Control System:
Web-based remote control for laptops, tablets, and other devices
Works on almost any browser
Independent of DAWs
Not limited to specific operating systems
Ethernet Interface
Description
CEDAR's Dialogue Noise Suppression technology is the standard for removing background noise from dialogue in studios. With near-zero latency, high-resolution processing, and a fast, intuitive user interface, it eliminates traffic noise, air conditioning, wind, rain, babble and general background noise from audio signals. It will also help to compensate for unfavourable acoustic conditions and poor microphone placement, and will even suppress excessive reverberation.

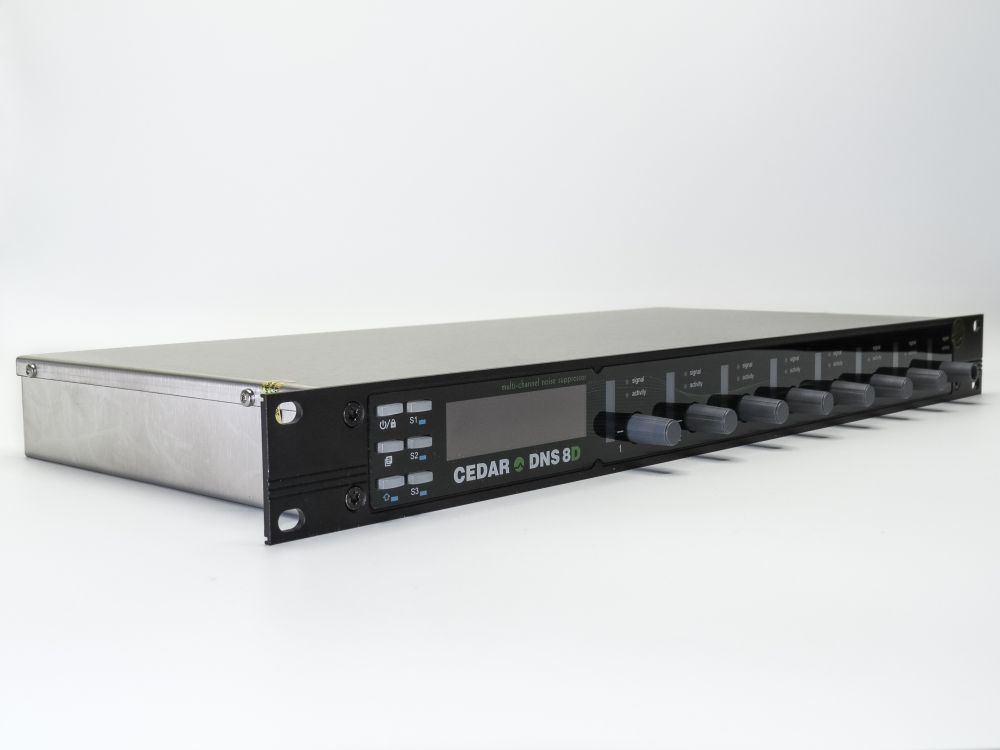

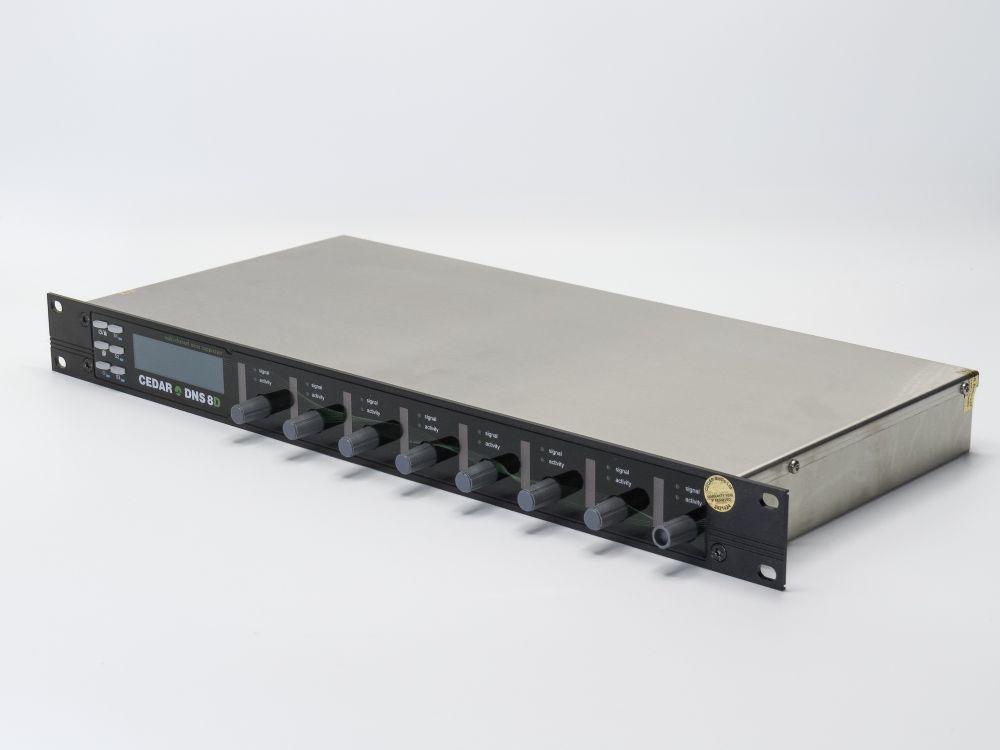

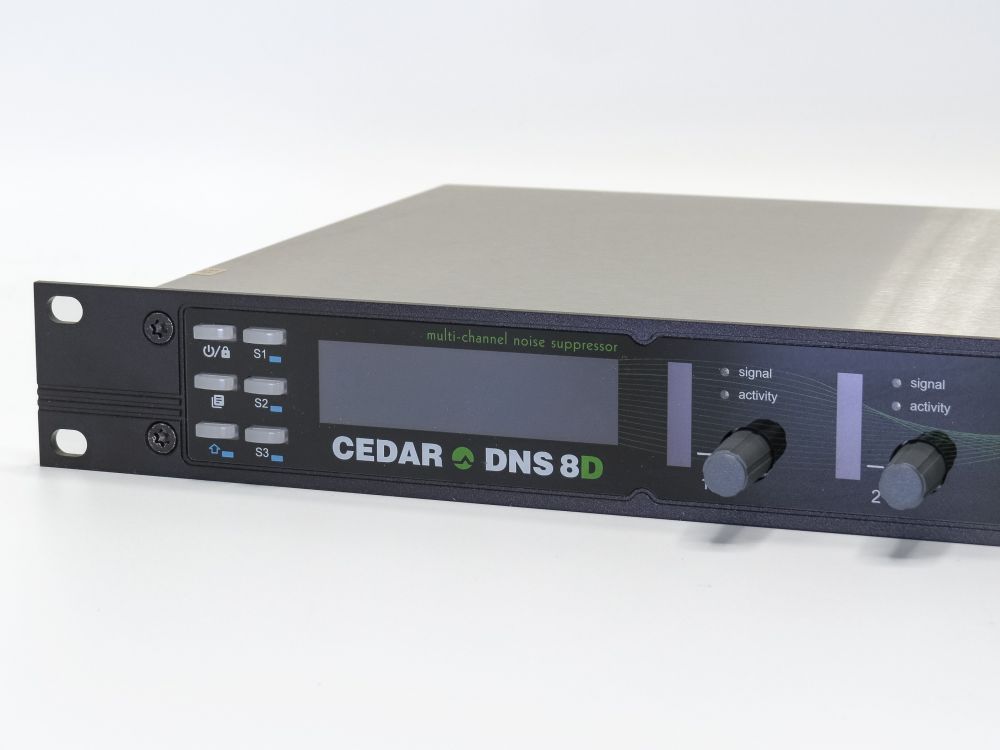

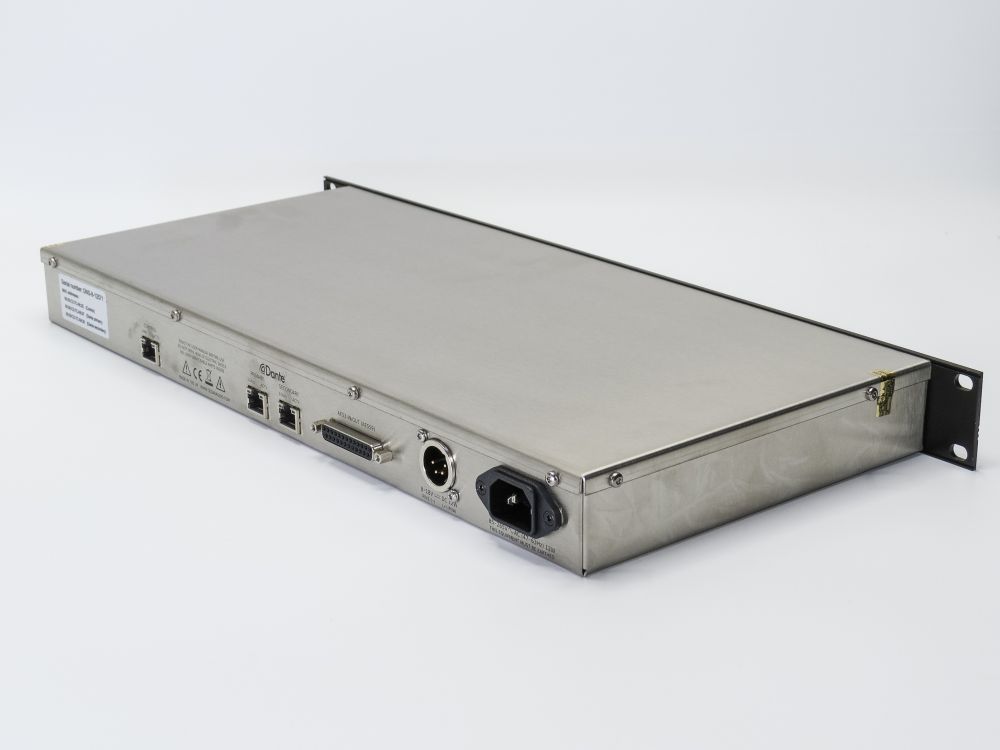

The CEDAR DNS 8D has been designed specifically for broadcast and live sound. With eight channels of noise suppression, it hosts a new algorithm that marries the best of the machine learning and signal processing on which the DNS 8 Live and the DNS 2 dialogue noise suppressors are based. With its near-zero latency and a standard 4-pin 12VDC input in addition to universal mains power, it's suitable for use in all live situations - not just broadcasting, but also live sound in venues such as theatres, concert halls, conference venues and places of worship.
