Description

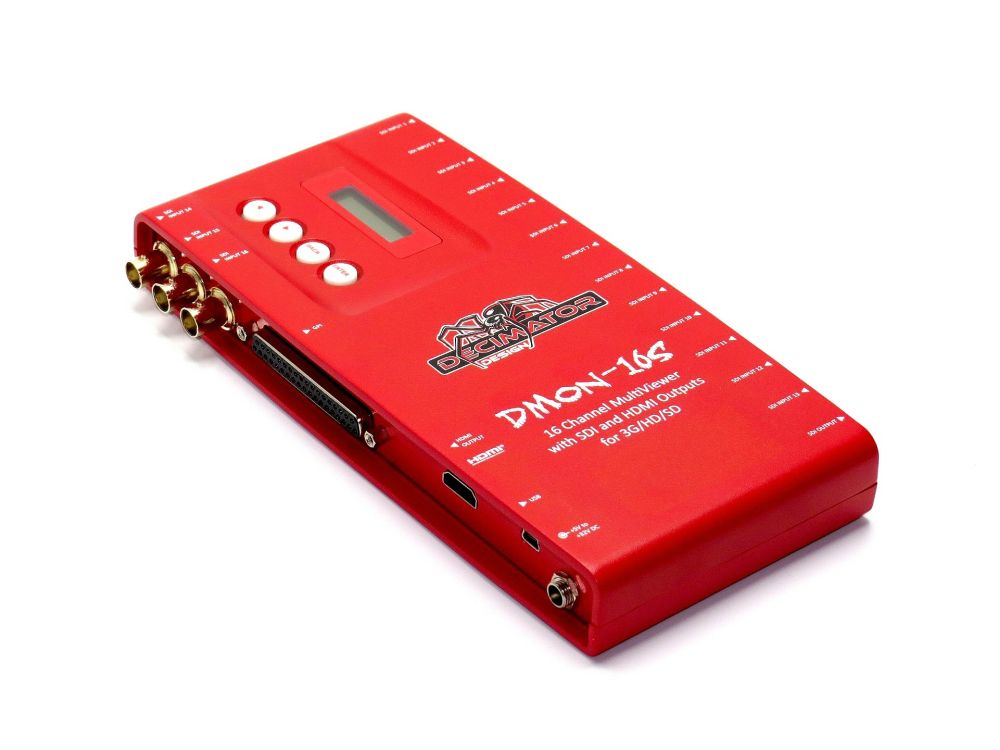

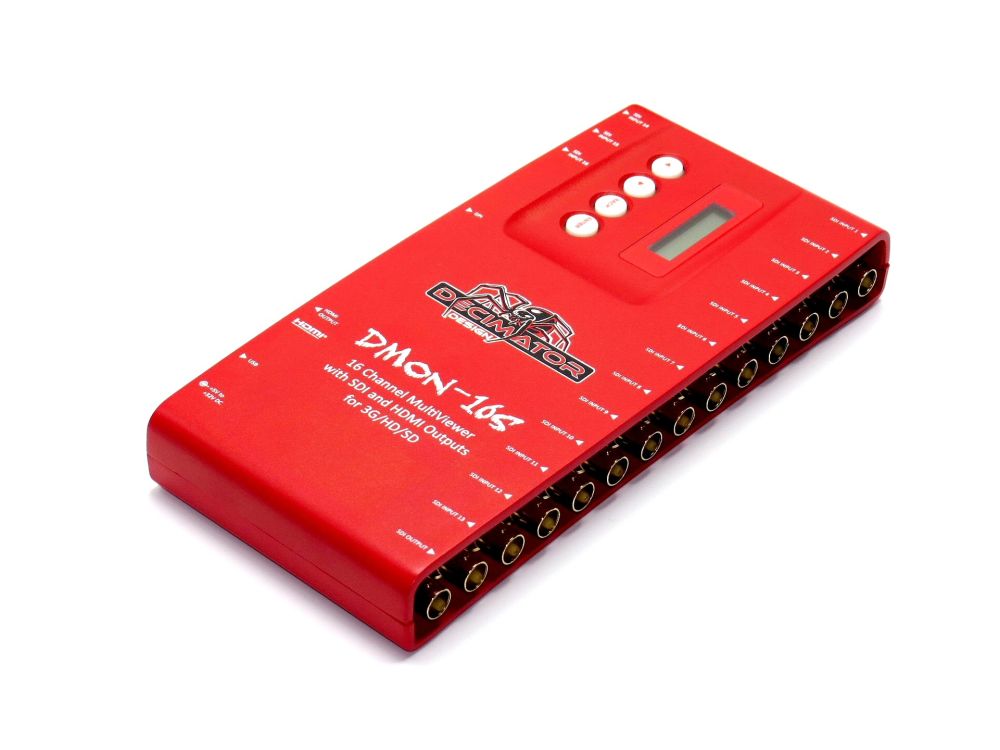

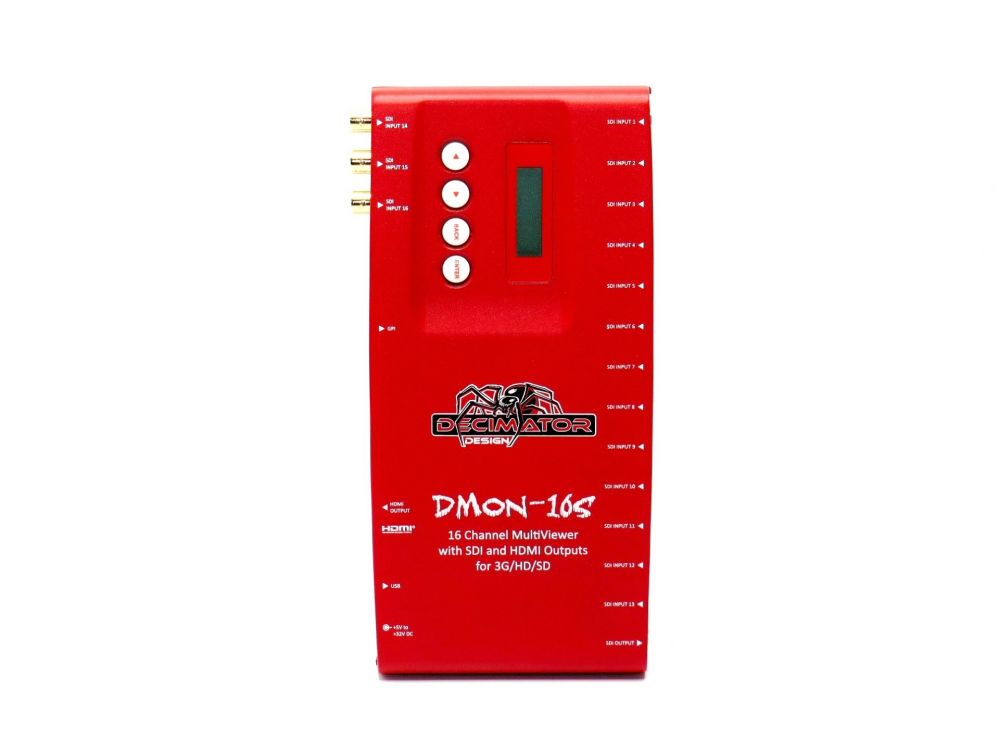

1 to 16 Channel Multi-Viewer with SDI and HDMI Outputs for 3G/HD/SD and Custom Layouts, UMDs, Audio Meters, Graticules and Tallies Low cost miniature (3G/HD/SD)-SDI 1 to 16 Multi-Viewer or 16 to 1 input multiplexer Custom Layouts with various standard layouts 16 Character UMD overlay per window with individual enables, custom positioning and size 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size Safe Action and Safe Title overlay per window with individual enables and adjustment Centre Cross overlay per window with individual enable Audio ID overlay Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border Tally boxes allows for up to 4 Tallies per window Fast switching between inputs using Full-Screen scaling Selectable output format in both Full-Screen and Multi-Viewer mode Low latency buffering for each input allowing non-synchronous inputs • Linked (3G/HD/SD)-SDI and HDMI outputs 16x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
