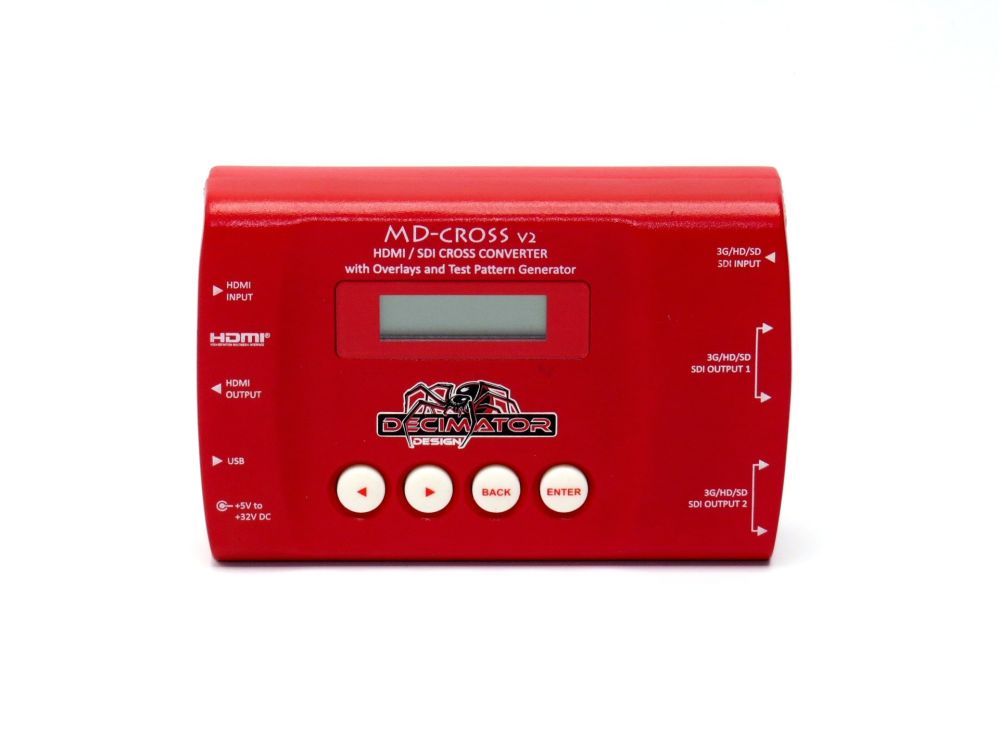

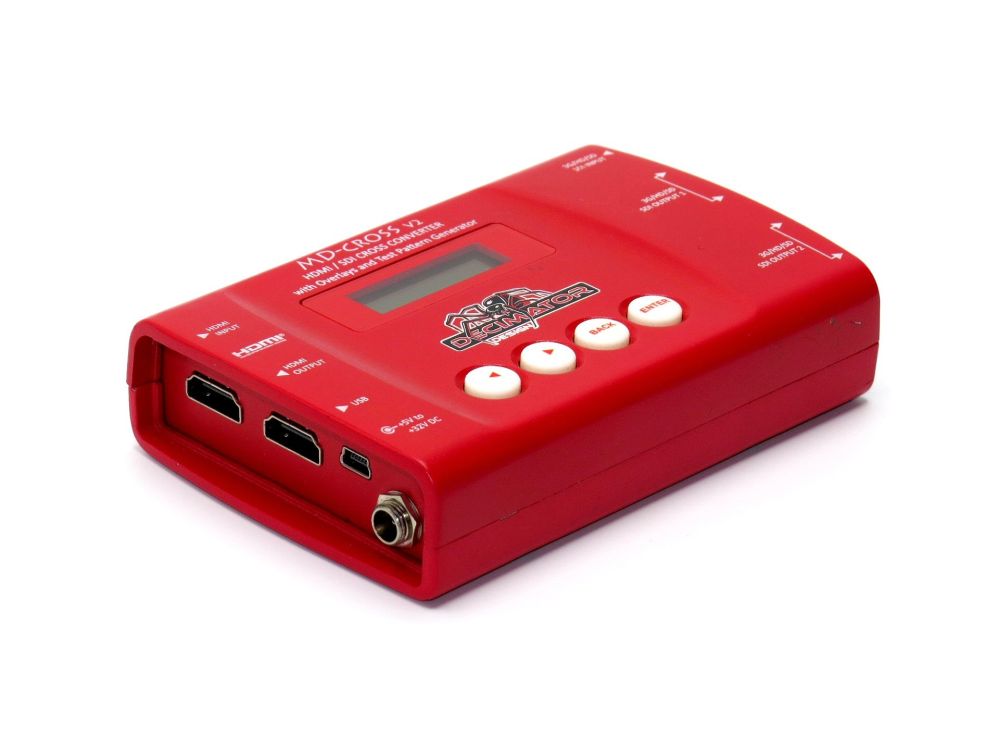

Inputs:

HDMI: 1 x Type A

SD/HD.3G-SDI: 1 x BNC

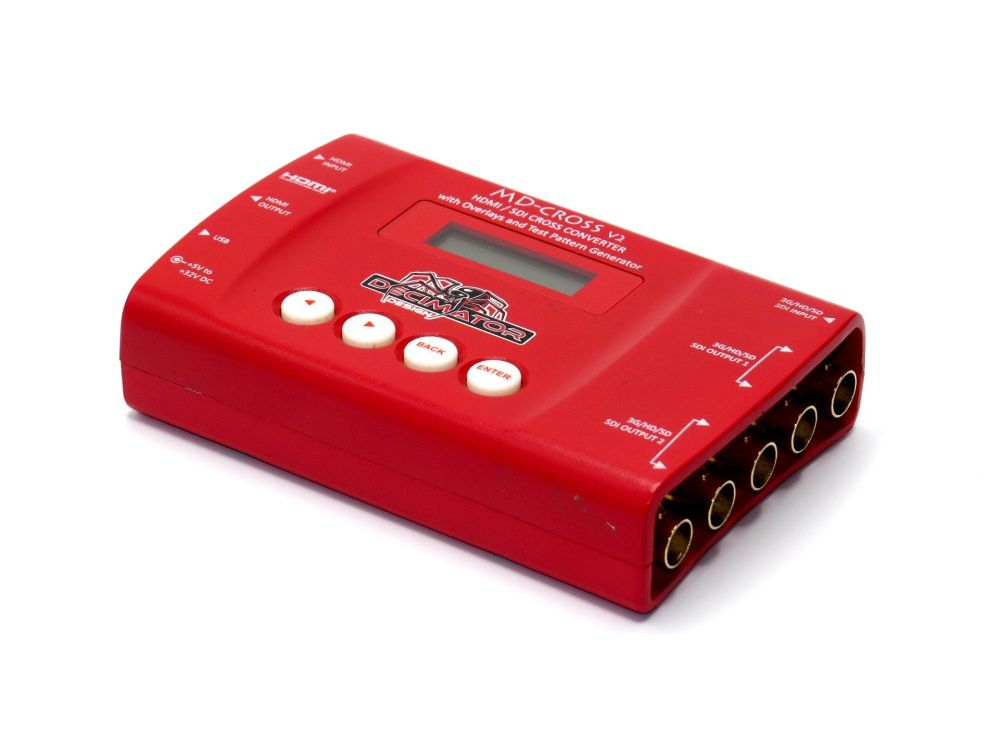

Outputs:

HDMI: 1

SD/HD.3G-SDI: 3 x BNC (1 x Active Loop-Through, 2 x output)

SDI Formats Supported:

3G: SMPTE 424M 2.97 and 2.967 Gb/s

1080p: 60/59.94/50 Hz

HD: SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s

1080i: 60/59.94/50 Hz

1080p/psf: 30/29.97/25/24/23.98 Hz

720p: 60/59.94/50/30/29.97/25/24/23.98 Hz

SD: SMPTE 259M 270 Mb/s

525i: 59.94

625i: 50

Control Buttons:

SDI output source from HDMI IN, SDI IN, Test Pattern Generator (TPG), and Scaler

HDMI output type and source from HDMI IN, SDI IN, TPG or Scaler

Scaler source, format and Aspect Controls

Full control for Audio Meter Overlays

Full control for Safe Action, Safe Title and Centre Cross Overlays

Full control for Text Overlays

Full control for Format Status Overlays

5 to 32 VDC

Pin Positive

Dimensions:

3.1 x 4.8 x 1.2" / 79.5 x 123 x 29.5 mm



Weight:

1.2lbs.
