Directional Pattern:
Omnidirectional

Principle of Operation:
Pressure

Cartridge Type:
Pre-polarized condenser

Frequency Response:
20 Hz – 20 kHz

Effective Frequency Range ±2 dB:
40 Hz – 20 kHz with 4 dB soft boost at 8 – 20 kHz

Sensitivity, Nominal, ±2.4 dB at 1 kHz:
6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent Noise Level, A-weighted:
Typical 26 dB(A) re. 20 μPa (max. 28 dB(A))

Distortion, THD < 0.5%:
122 dB SPL RMS, 125 dB SPL peak

Distortion, THD < 1%:
125 dB SPL RMS, 128 dB SPL peak

Dynamic Range:
Typical 102 dB

Max. SPL, THD 10%:
144 dB SPL peak

Rated Output Impedance:
From MicroDot: 30 – 40 Ω
From DAD6001-BC: 100 Ω

Cable Drive Capability:
Up to 300 m (984 ft) with DAD6001-BC XLR adapter

Power Supply (for Full Performance):
For wireless systems: Min. 5 V – Max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power), will work from 12 V

Current Consumption:
Typical 1.5 mA (microphone)
3.5 mA with DAD6001-BC XLR Adapter

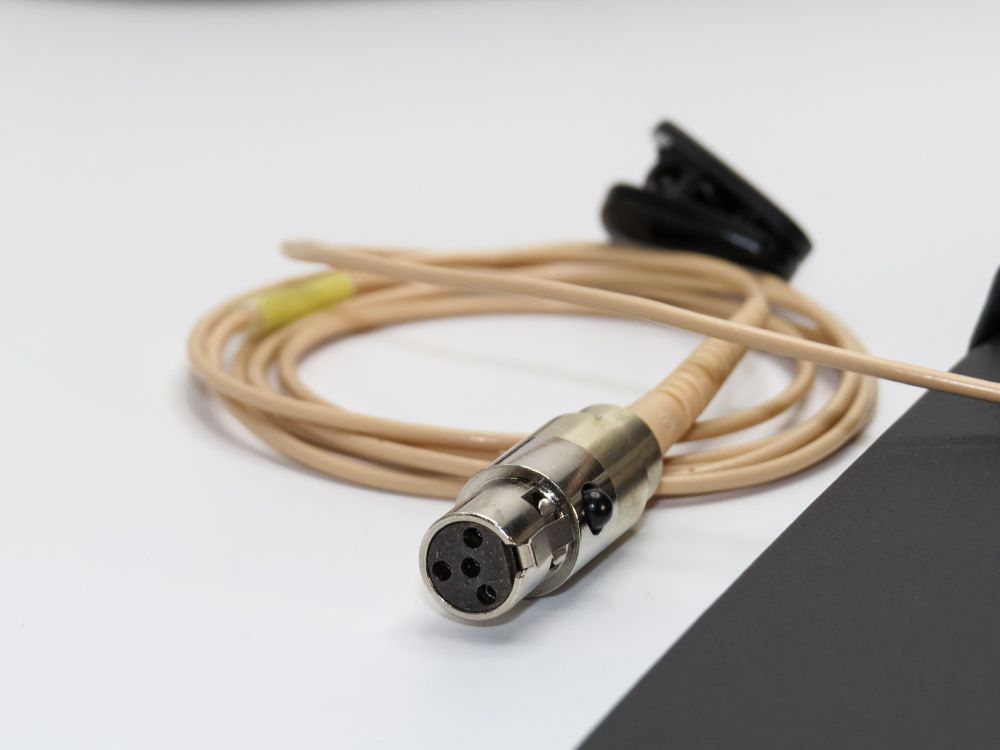

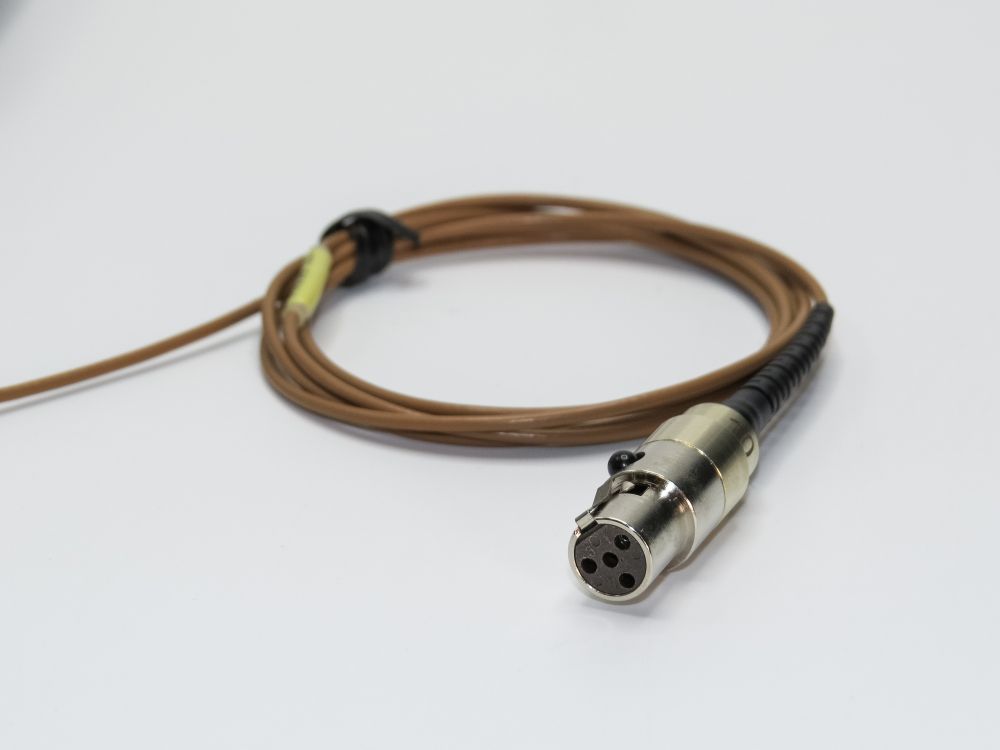

Connector:

TA4F Mini-XLR

Weight:
11 g (0.40 oz) including cable and MicroDot connector

Microphone Head Size (H x W x D):
3.4 / 8.9 mm (0.13 / 0.35 in)

Capsule Diameter:
3 mm (0.12 in)

Cable Length:
1.3 m (4.3 ft)

Polarity:
Positively increasing sound pressure produces positive-going voltage on MicroDot pin

Temperature Range:
-40°C to 45°C (-40°F to 113°F)

Relative Humidity (RH):
Up to 90%
