Line level outputs:

0 DBFS Reference Output Levels:

18 or 24dBu (switchable)

Frequency Response Output:

20Hz - 20kHz ±0.05dB

THD N Output:

<-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input

Dynamic Range:

120dB A-weighted (typical), 20Hz - 20kHz



Headphone output:

0 DBFS Reference Levels Headphones

19dBm

Headphone Frequency Response:

20Hz - 20kHz ±0.05dB

Headphone THD N:

<-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input

Headphone Dynamic Range:

118dB A-weighted (typical), 20Hz - 20kHz

Output Impedance

5O

Headphone Impedance

32O - 600O



Digital performance:

Supported Sample Rates:

44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit

Clock Sources

Internal or from Dante Network Master

Minimum Latency

1ms

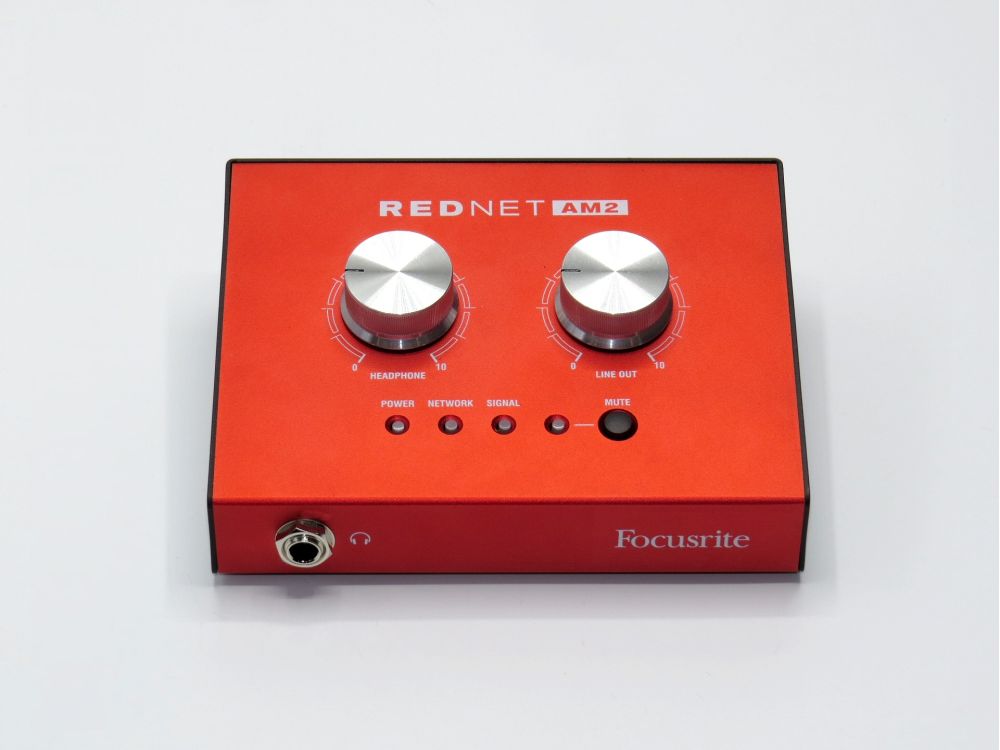

Front panel connectivity:

Headphone Outputs:

1 x 1/4" stereo jack

Line Outputs

2 x Male XLR

PSU (PoE And DC)

1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector

Network

Green LED: Indicates device is network master or network slave, shows valid network lock



Power:

Power Over Ethernet (PoE)

Complies with IEEE 802.3af class 0 Power-over-Ethernet standard

DC Power Supply

1 x 12V 1.2A DC Power Supply

Power Consumption

PoE: 11.0W - DC: 9.8W

Operating Temperature

Operates at up to an ambient temperature of 50 degrees Celcius
