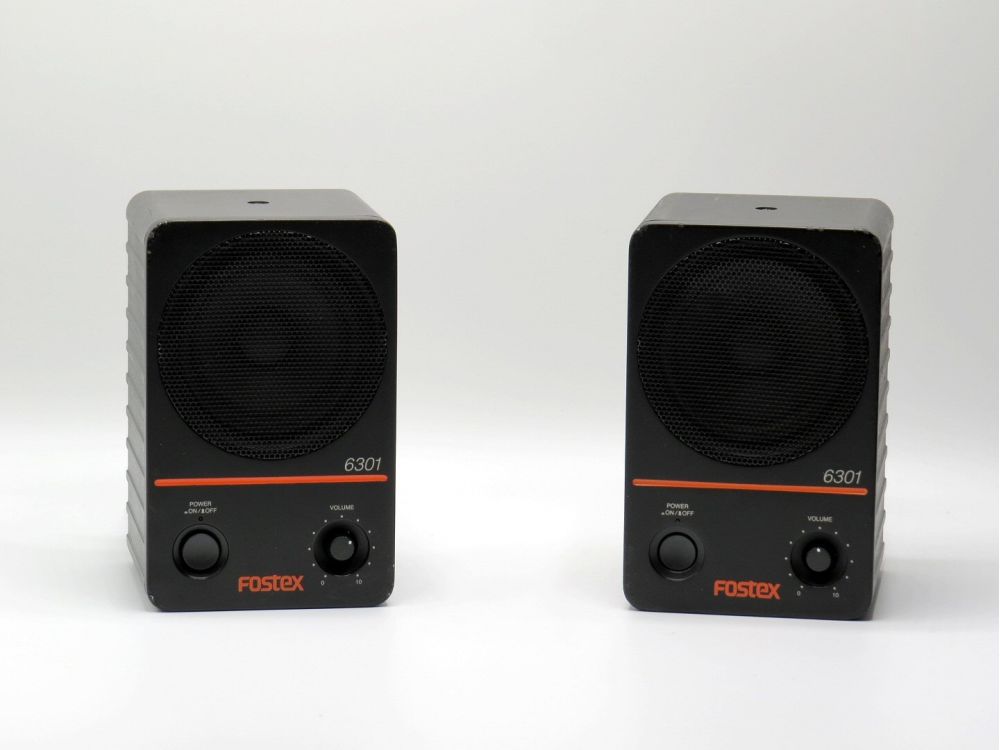

- Fostex 6301ND
Enclosure type:
Closed type (Material: Aluminum die-casting)
UnitCone type:
10cm full range unit x 1
Frequency response:
70Hz to 15kHz
Sound Pressure Level:
85dB/W(1m)
Maximum Sound Pressure Level:
98dB
Amplifier section:
Rated output20W
Analog input:
Unbalanced Φ6.3mm (1/4″) TS phone, input sensitivity -14dBV (0.2Vr.m.s.), input impedance 10kΩ min.

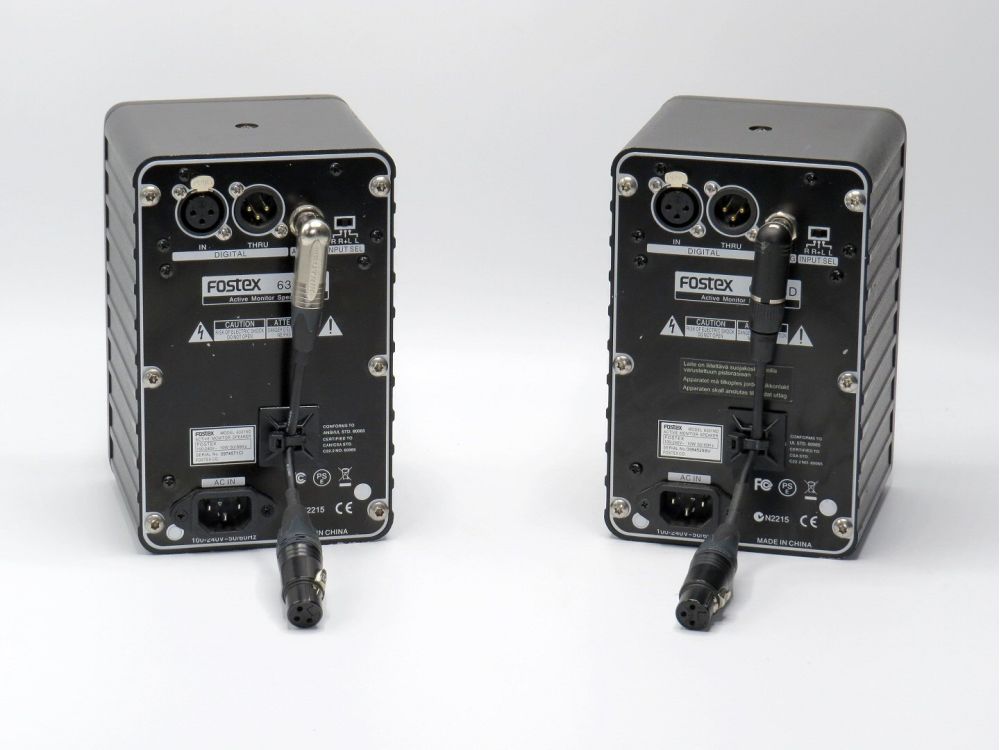

Digital input:
Balanced XLR-3-31 type, compatible format: IEC 60958 (AES/EBU), Fs: 44.1 to 96kHz, input impedance 110Ω
T.H.D.:
0.05% (at 1kHz/1W output)
Residual noise:
-65dBV
Guaranteed Operating Environment:
Temperature-10°C to +50°C
Level of humidityWithin 90%
General:
External Dimensions:
120(W)×189(H)×120(D) mm
(including maximum projection)
Weight:
2.24kg
Power requirement:
AC100-230V (50/60Hz)
Power consumption:
10W (in standby mode: 0.5W or less / compliant with European ErP Directive)
Accessories:
Power cable (2m)
Enclosure type:
Closed type (Material: Aluminum die-casting)
UnitCone type:
10cm full range unit x 1
Frequency response:
70Hz to 15kHz
Sound Pressure Level:
85dB/W(1m)
Maximum Sound Pressure Level:
98dB
Amplifier section:
Rated output20W
Analog input:
Unbalanced Φ6.3mm (1/4″) TS phone, input sensitivity -14dBV (0.2Vr.m.s.), input impedance 10kΩ min.
Digital input:
Balanced XLR-3-31 type, compatible format: IEC 60958 (AES/EBU), Fs: 44.1 to 96kHz, input impedance 110Ω
T.H.D.:
0.05% (at 1kHz/1W output)
Residual noise:
-65dBV
Guaranteed Operating Environment:
Temperature-10°C to +50°C
Level of humidityWithin 90%
General:
External Dimensions:
120(W)×189(H)×120(D) mm
(including maximum projection)
Weight:
2.24kg
Power requirement:
AC100-230V (50/60Hz)
Power consumption:
10W (in standby mode: 0.5W or less / compliant with European ErP Directive)
Accessories:
Power cable (2m)
Description
A re-design for the 6301 speakers with the D-class power amplifier; and a driver unit featuring an energy saving "auto stand-by” function makes it the 6301ND an ultra-rugged option for monitoring.
20W D-class power amplifier for higher output level and less power consumption with no heat sink
Dedicated 4-inch full range driver for clear audio reproduction
Traditional rugged enclosure of aluminium die-cast with the physically identical height and width to the current B-series
Flat panel design to avoid inadvertent power-off or level change
Auto Stand-by mode (compliant to ErP directive) for energy saving
Detachable IEC type power inlet with multi-voltage power handling
Description
A re-design for the 6301 speakers with the D-class power amplifier; and a driver unit featuring an energy saving "auto stand-by” function makes it the 6301ND an ultra-rugged option for monitoring.
20W D-class power amplifier for higher output level and less power consumption with no heat sink
Dedicated 4-inch full range driver for clear audio reproduction
Traditional rugged enclosure of aluminium die-cast with the physically identical height and width to the current B-series
Flat panel design to avoid inadvertent power-off or level change
Auto Stand-by mode (compliant to ErP directive) for energy saving
Detachable IEC type power inlet with multi-voltage power handling
-
