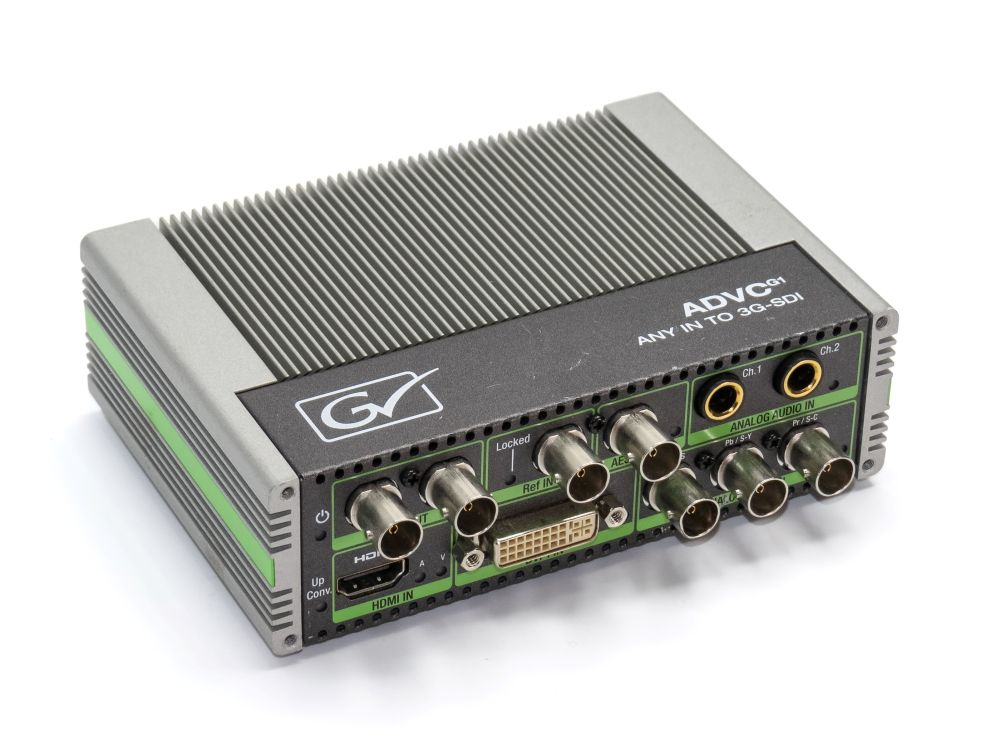

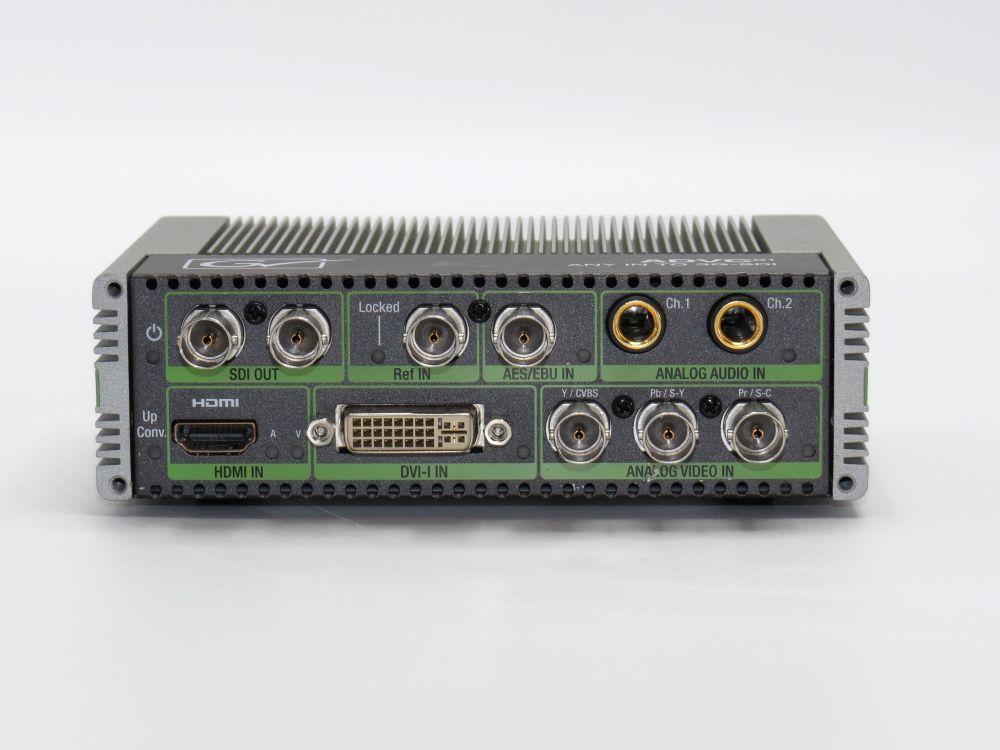

Video Inputs:

1x HDMI

1x DVI-I: DVI and analog RGB

3x BNC: RGB, analog component, composite, and S-Video

Audio Inputs:

2x Analog Audio

1x AES/EBU (stereo) 8x channels embedded via HDMI

Reference Video Input:

1x BNC: Frame Synchronizer

Video Outputs:

2x BNC: 3G/HD/SD-SDI

Input Formats:

1080i60/59.94/50

1080p60/59.94/50/30/29.97/25/24/23.98

1080psf/24/23.98

720p60/59.94/50

480i/p60/59.94

576i/p50

PC resolutions (640 x 480, 800 x 600, 1024 x 768, 1366 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1200)

Output Formats:

1080i60/59.94/50

1080p60/59.94/50/30/29.97/25/24/23.98

1080psf/24/23.98

720p60/59.94/50/30/29.97/25/24/23.98

480i59.94

576i50

Input Signal Compatibility:

YPbPr (SD), EBU-N10 (SD), Betacam (SD), YC (SD), YPbPr (HD), HDMI

Output Signal:

SMPTE 259M (SD-SDI), SMPTE 292M (HD-SDI), SMPTE 424M (3G-SDI)

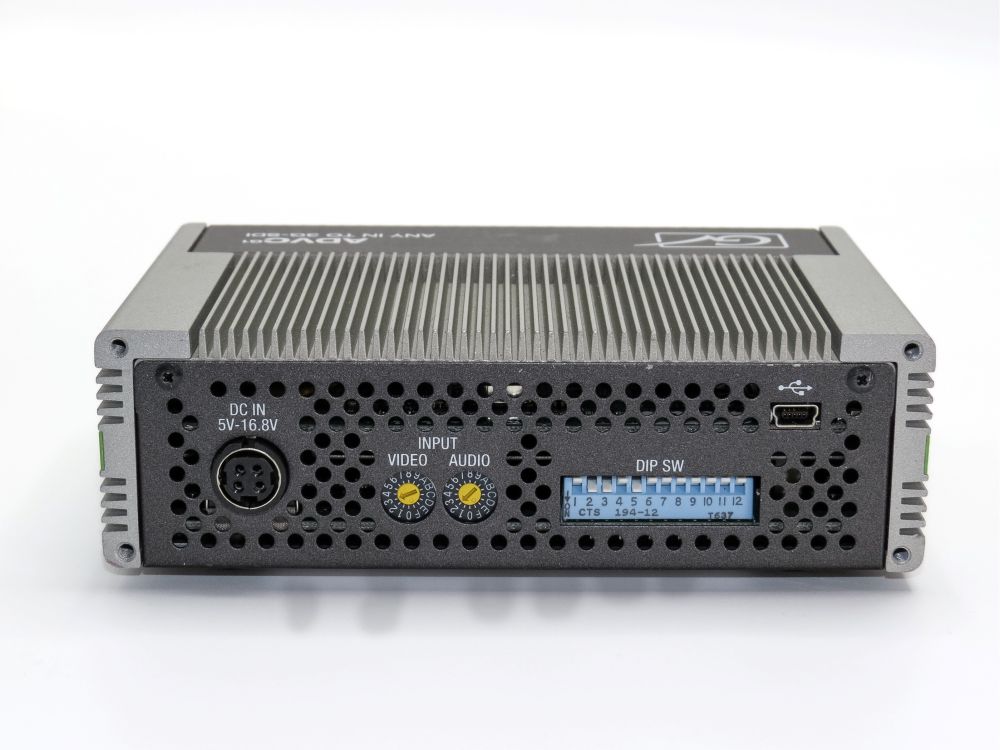

Power:

12V DC, 3A (includes AC adapter)

Operating Temperature:

32-104 °F (0-40 °C)

Humidity:

8%~80% (no condensation)

Dimensions:

1.7 x 5.6 x 3.9" (42.5 x 142.5 x 98.5mm)

Weight:

1.54lbs
