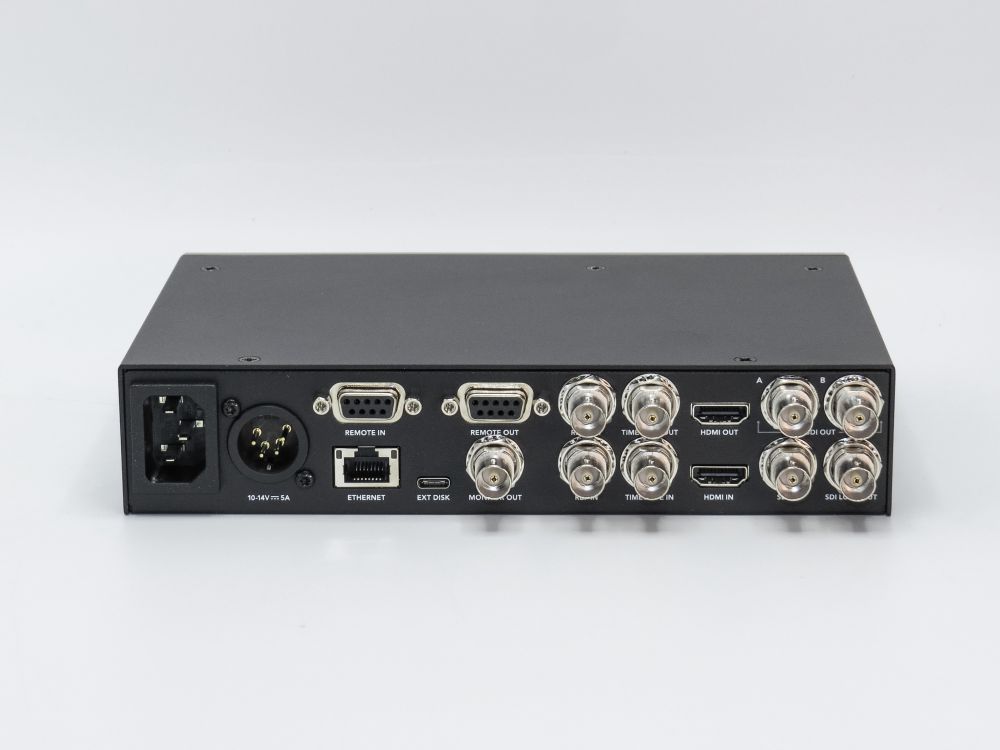

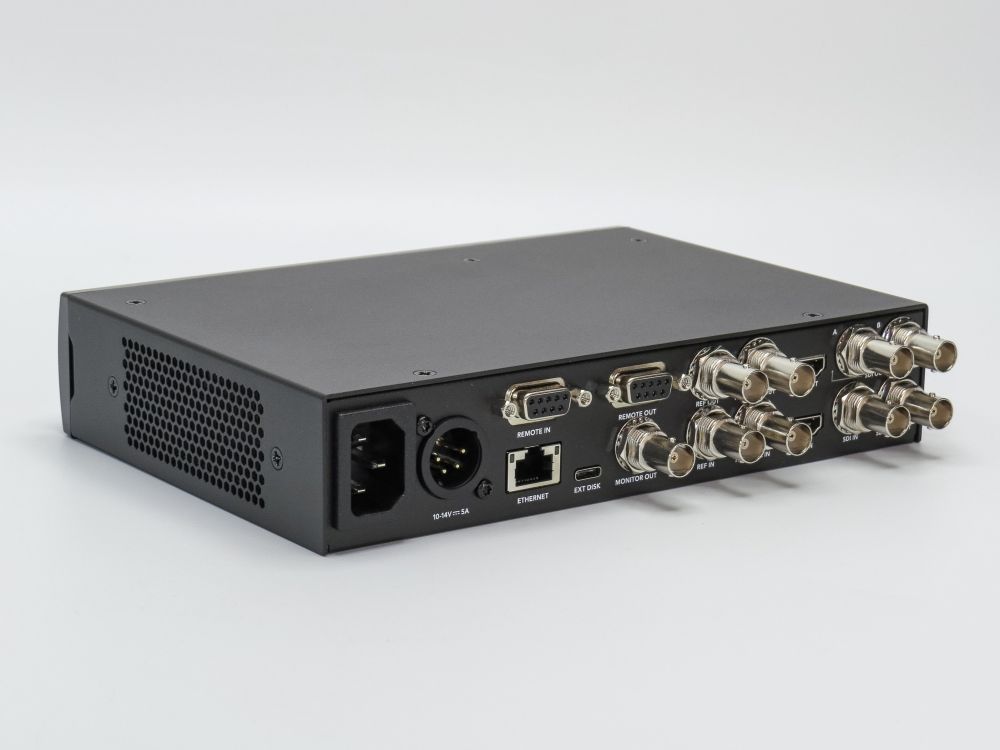

Connectivity:

Video Inputs:

1 x BNC, 6G-SDI

1 x HDMI 2.0 Type A

Video Output:

1 x BNC, 6G-SDI Loop-Out

2 x BNC, 6G-SDI

1 x HDMI Type A, 2.0

1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI)

1 x BNC, 3G-SDI (Monitor Out)

Timecode:

In: 1 x BNC

Out: 1 x BNC

Reference:

Tri-Sync or Black Burst

Input Connector: 1 x BNC

Output Connector: 1 x BNC

Audio Input:

None (Embedded Audio Only, 16 Channels)

Audio Output:

Headphone: 1 x 1/4" Phone

Device Control:

2 x RS-422 Deck Control Port on DB9 Female

Ethernet:

1 x RJ45 for Remote Operation

Media Interface:

2 x SD Slots

Media Type: UHS I and UHS II

Format: ExFAT or HFS+

Standards

Supported Resolutions:

4K

4096 x 2160p: 30/29.97/25/24/23.98

3840 x 2160p: 30/29.97/25/24/23.98

2K:

2048 x 1080p: 0/29.97/25/24/23.98

HD:

1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98

1920 x 1080i: 60/59.94/50

1280 x 720p: 60/59.94/50

SD

NTSC

PAL

SDI Compliance:

SMPTE 259M//292M/296M/372M/424M/425M Level A and B

SMPTE 2084

SMPTE 2108‑1

SDI Metadata Support:

HD RP188 and Closed Captioning CEA‑708

HDR Metadata Supported on SDI

Video Sampling:

4:2:2 YUV

Color Depth:

10-Bit

Color Space:

Rec. 601

Rec. 709

Rec. 2020

33-Point 3D LUTS Can Be Applied to SDI Monitor Out

HDR Support:

Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084

Multi Rate Support:

Autodetection of SD, HD, and 6G-SDI

Audio Sampling:

Television Standard 48 kHz, 24-Bit

Supported Codecs:

ProRes

HQ QuickTime

422 QuickTime

LT QuickTime

Proxy QuickTime for Formats up to 1080p60

DNxHD

220x

220x MXF

145

145 MXF

45

45 MXF for 720p and 1080p HD Formats up to 60 fps

H.264

SDI 4:2:2 10-Bit

High 4:2:0 8-Bit

Medium 4:2:0 8-Bit

Low 4:2:0 8-Bit for Progressive Formats up to 1080p60

System Requirements:

Operating System:

macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later

Windows 10 64-Bit

General:

Rack Height:

1 RU

Power Supply:

AC

100 to 240 VAC, 50/60 Hz

DC:

12 VDC; 1 x 4-Pin XLR

Consumption:

100 W Max

Operating Temperature:

32 to 104°F / 0 to 40°C

Storage Temperature:

-4 to 140°F / -20 to 60°C

Relative Humidity:

0 to 90% Non-Condensing

Dimensions:

8.27 x 6.96 x 1.74" / 21.01 x 17.68 x 4.42 cm

Weight:

1.8 lb / 0.82 kg
