Description

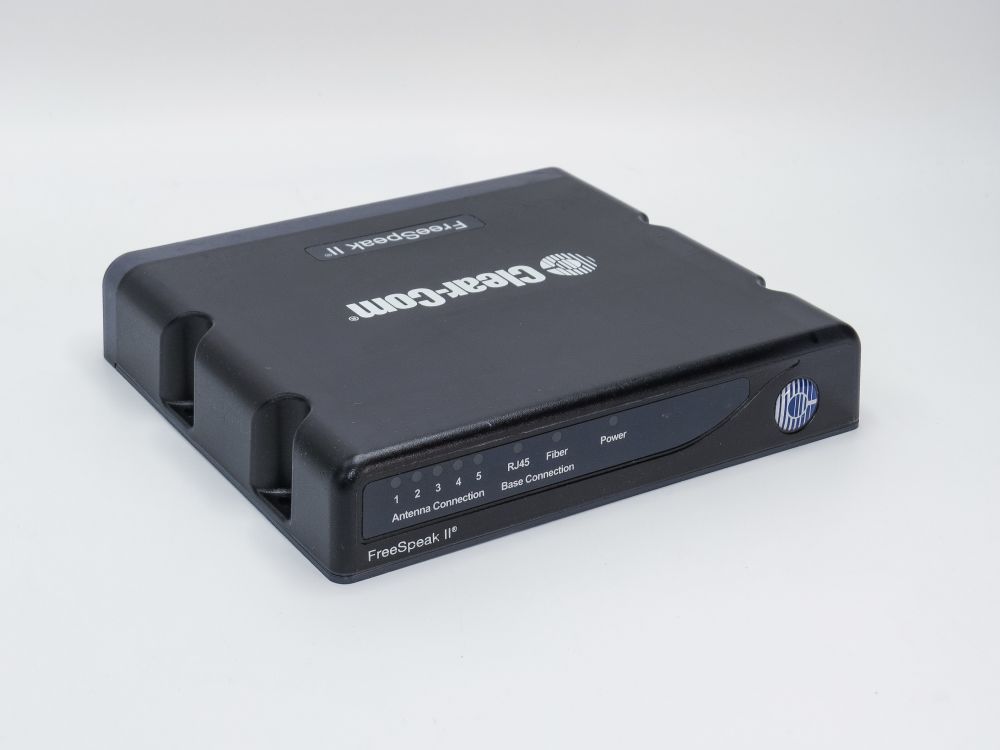

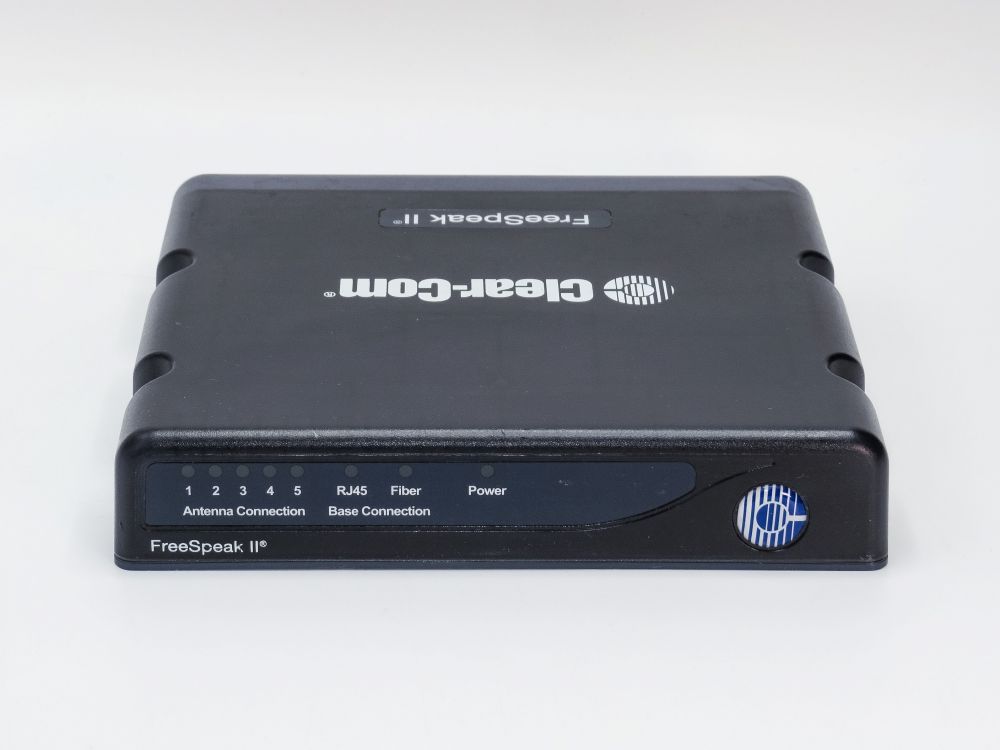

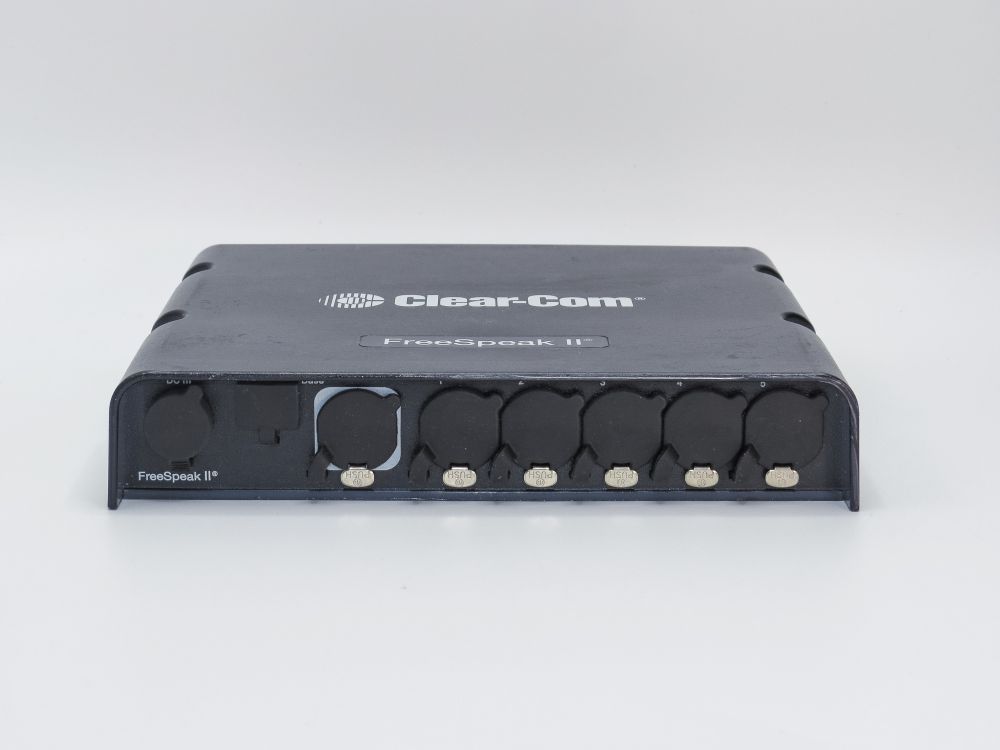

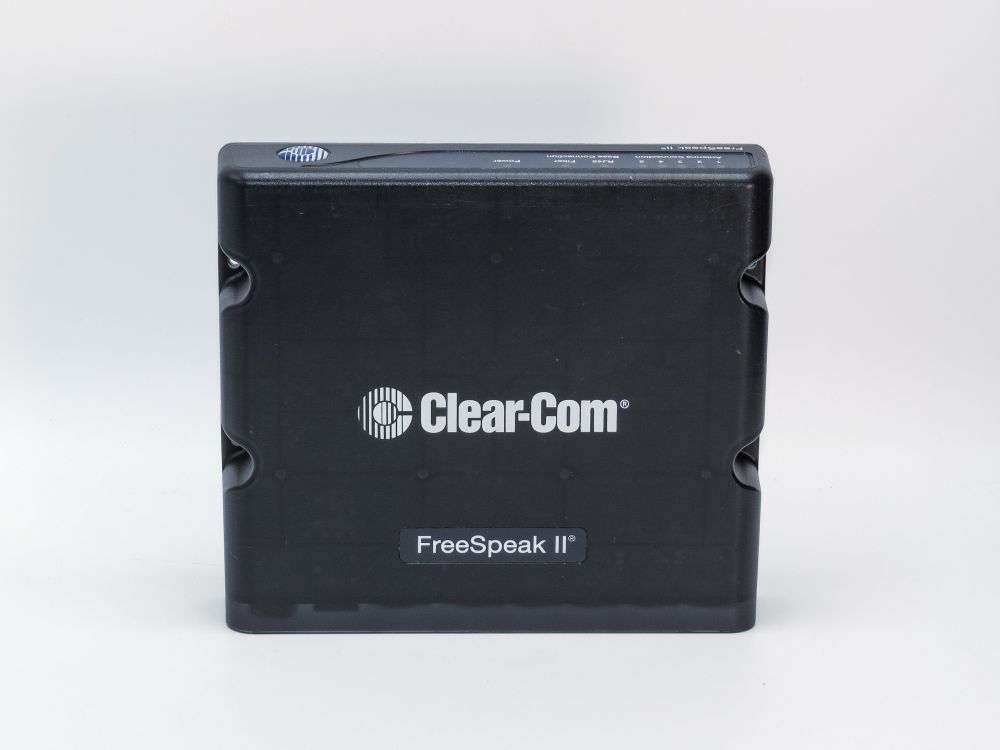

The FSII-SPL is a splitter that connects multiple FreeSpeak II transceiver antennas to an Eclipse® HX matrix (via E-QUE-HX card) or a FreeSpeak II base station. The splitter provides up to five antenna feeds from one antenna port and has an SFP fiber slot for fiber connectivity. Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards Provides 5 FSII transceiver feeds on one port on FSII base station or E-IPA-HX card SFP fiber slot for fiber link to FSII base station or as a fiber bridge between FSII-BASE-II stations and Eclipse HX frames Supports both multi-mode and single-mode fiber Configure settings using DIP switches IP-63 water resistance for outdoor use LED status indicator on front and back
