Number of Supported Cameras:

200 Channels via IP

5 Channels via RS-422

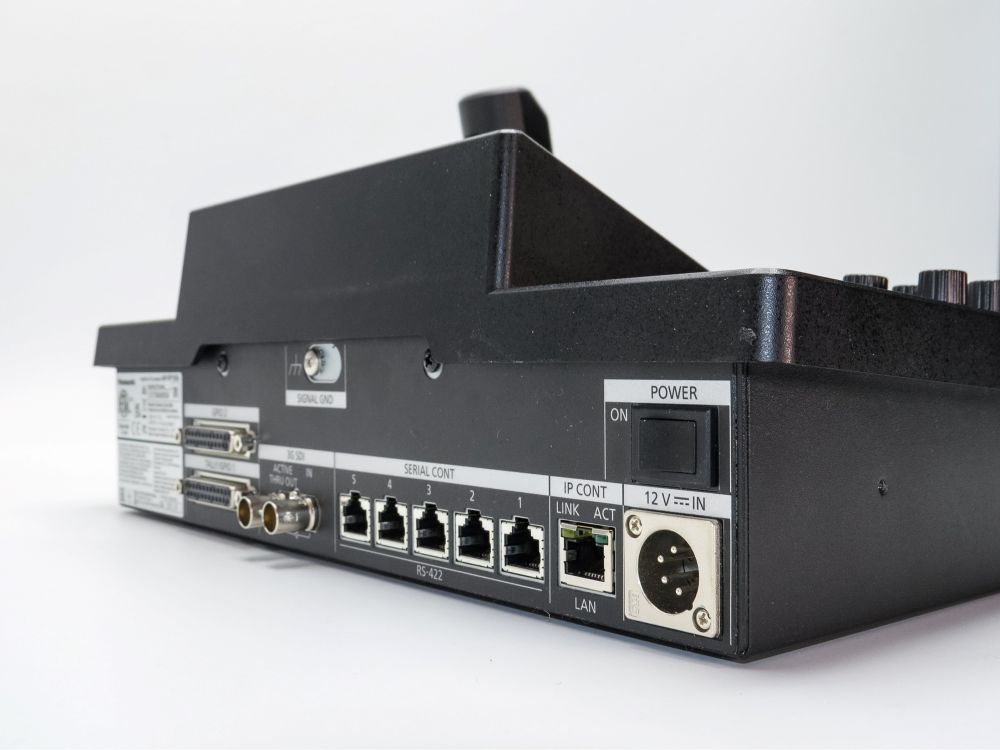

Control I/O

1x RJ45 (LAN)

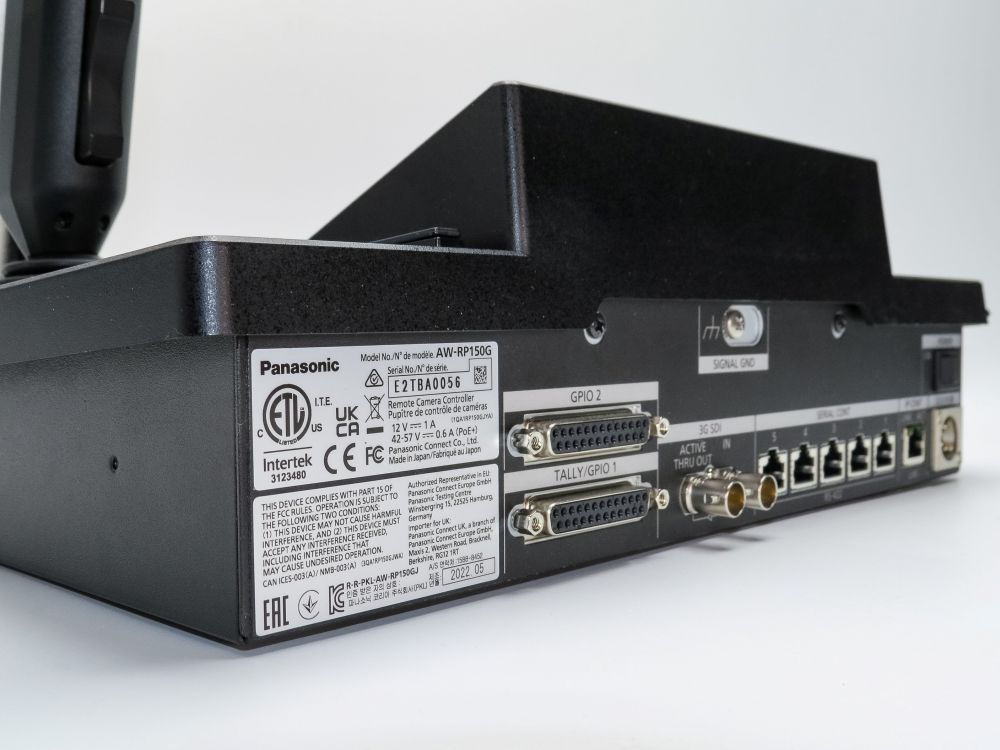

Other I/O:

2x D-Sub 25-Pin (GPI, Tally)

5x RJ45 (RS-422, Tally)

Video I/O:

1x BNC (3G-SDI) Input

1x BNC (3G-SDI) (Loop Output)

Controls:

10x Camera Selection Buttons

Display:

Display Size:

7"

Native Resolution:

800 x 480



Touchscreen:

Yes

Power:

PoE Support

PoH 802.3at

Power Connectors

1x XLR 4-Pin

Operating Conditions:

32 to 104°F / 0 to 40°C at 20 to 90% Humidity

Storage Conditions:

-4 to 122°F / -20 to 50°C

Dimensions:

13.5 x 9.6 x 7" / 34.2 x 24.5 x 17.8 cm

Weight:

7 lb / 3.2 kg
