Key Specs

Image Sensor

1"-Type MOS

Sensor Resolution

Effective: 8.29 Megapixel (3840 x 2160)

Shutter Speed

1/10000 to 1/25 Second

Optical Zoom Ratio

20x

Max Digital Zoom

24x ( in UHD 4K)

32x ( in 1080p)

Video Output

SDI/BNC / HDMI

UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps

1920 x 1080p at 24.00/25/29.97/50/59.94 fps

1920 x 1080i at 50/59.94 fps

1920 x 1080PsF at 23.98/25/29.97 fps

1280 x 720 at 50/59.94 fps

Broadcast Output

NTSC/PAL

IP Streaming

H.264/MJPEG/H.265 via SRT/RTMPS/RTMP

3840 x 2160 at 60p

Supported Control Protocols

IP

NDI

NDI|HX2

RS-422

PoE Support

PoE++ 802.3bt

Mounting

1x 1/4"-20 Female

Imaging

Image Sensor

1"-Type MOS

Horizontal Resolution (TV Lines)

1600 TV Lines

Sensor Resolution

Effective: 8.29 Megapixel (3840 x 2160)

Focus Control

Autofocus

Manual Focus

Exposure Control

Shutter Speed

1/10000 to 1/25 Second

ISO/Gain Sensitivity

Gain: 0 to 36 dB (36 to 42 dB Extended)

Precise Scan Rate Control

Yes

Signal-to-Noise Ratio

60 dB

Minimum Illumination

2 Lux

Flip / Mirror Support

Image Flip, Mirror (Vertical)

White Balance

Range: 2000 to 15,000K

Presets: ATW, AWB

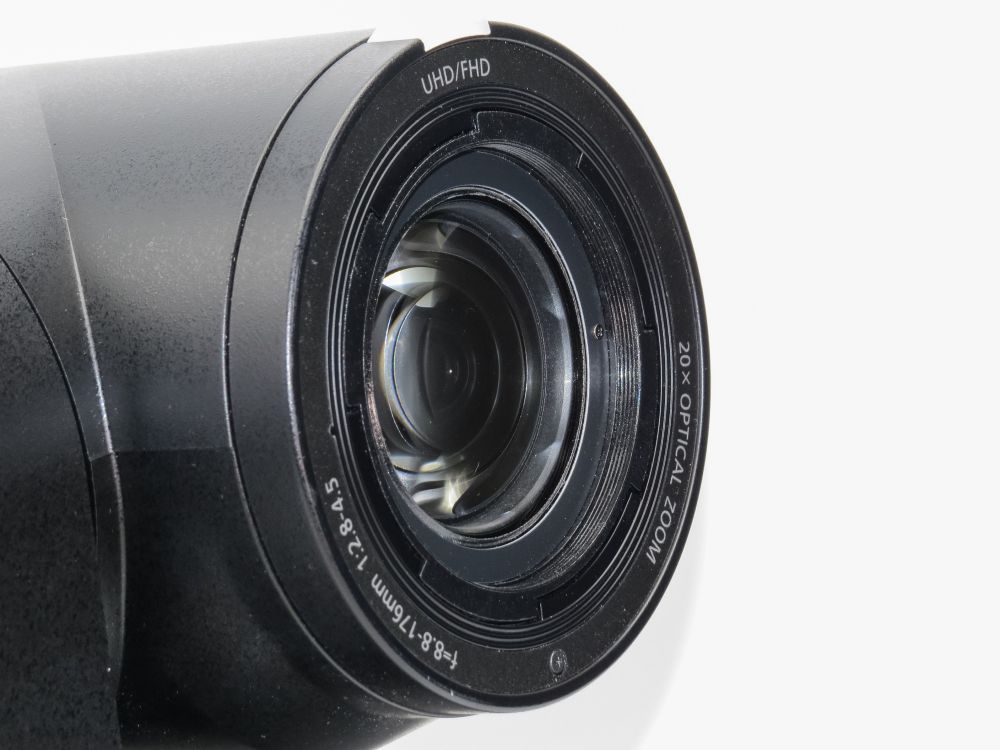

Lens

Focal Length

8.8 to 176mm (35mm Equivalent: 24.5 to 490mm)

Optical Zoom Ratio

20x

Max Digital Zoom

24x ( in UHD 4K)

32x ( in 1080p)

Field of View

Horizontal: 75.1 to 4°

Vertical: 46.7 to 2.3°

Diagonal: 82.8 to 4.6°

Maximum Aperture

f/2.8 to 4.5

Minimum Focus Distance

3.3' / 1 m

Video Capture

Video Output

SDI/BNC / HDMI

UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps

1920 x 1080p at 24.00/25/29.97/50/59.94 fps

1920 x 1080i at 50/59.94 fps

1920 x 1080PsF at 23.98/25/29.97 fps

1280 x 720 at 50/59.94 fps

Embedded Audio

HDMI/IP/SDI

Audio Recording

2-Channel 16-Bit 48 kHz AAC LC Audio

Broadcast Output

NTSC/PAL

IP Streaming

H.264/MJPEG/H.265 via SRT/RTMPS/RTMP

3840 x 2160 at 60p

Control

Presets

100 via IP, RS-422

Pan/Tilt

Pan: 350° (-175 to 175°) at 0.08 to 180°/s

Tilt: 240° (-30 to 210°)

Tally Light

Yes

Supported Control Protocols

IP

NDI

NDI|HX2

RS-422

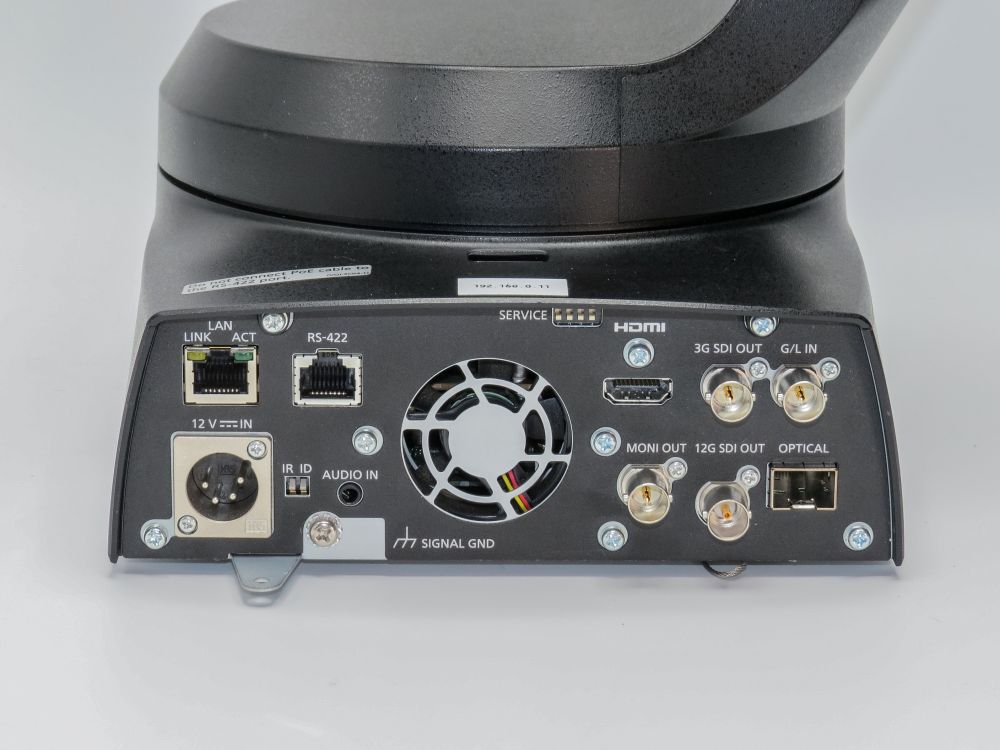

Interface

Video I/O

1x HDMI 2.0 Output

1x BNC (12G-SDI) Output

2x BNC (3G-SDI) Output

Audio I/O

1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input

Other I/O

1x RJ45 (LAN)

1x RJ45 (RS-422)

1x BNC (Genlock) Input

Expansion Slots

1x SFP+ Slot

Built-In Microphone

No

Built-In Speaker

No

Power

PoE Support

PoE++ 802.3bt

Power I/O

1x XLR 4-Pin (10.8 to 13.2VDC at 4 A) Input

Power Consumption

PoE: 1.2 A

Environmental

Operating Conditions

32 to 104°F / 0 to 40°C at 20 to 90% Humidity

Storage Conditions

24 to 122°F / -4 to 50°C

Environmental Resistance

No

General

Mounting

1x 1/4"-20 Female

OS Compatibility

Windows 10 to 10 / macOS 10.11 to 10.13

Security Lock Support

Key Lock

Dimensions (W x H x D)

8.4 x 10.5 x 8.6" / 213 x 267 x 219 mm (Without Bracket, Protrusions)

Weight

9.3 lb / 4.2 kg (Body Only)
